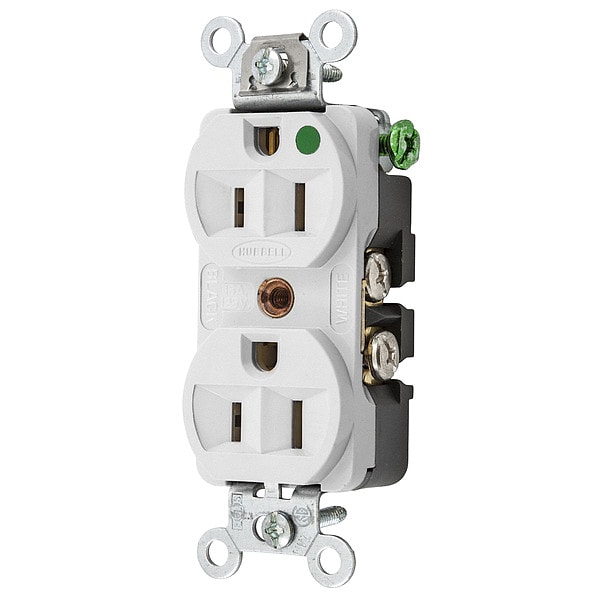

15A Duplex Receptacle 125VAC 5-15R WH
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Heavy Use Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Voltage | 125VAC |
| Material | Thermoplastic |
| Power Indicator | No |
| Color - Plugs and Receptacles | White |
| Amps | 15 |
| Number of Gangs | 1 |
| NEMA Configuration | 5-15 |
| Item | Traditional Duplex |
| Outlet Type | Duplex |
| Weather Resistant - Plugs and Receptacles | No |
| Sub-Category | Duplex Receptacles |
| Wiring Method - Plugs and Receptacles | Side, Back |
| HP | 1/2 hp |
| Weather Resistant | No |
| Color | Blanc |
| Description | Slender/Compact |
| Mounting Type | Flush |
| Wiring Method | Back, Side |
| Corrosion Resistant | No |
| Phase | Single Phase |
| Number of Wires | 3-Wire |
| Number of Poles | 2-Pole |
| IP Rating | IP20 |
| Brand | Hubbell Wiring Device-Kellems |
| Wire Size | #14 AWG to #10 AWG |
| Mounting Hardware Material | Screw Mounting |
| Style | Finder Groove Face |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating | 125 V |
| Nema Rating | 5-15R |
| Type | Receptacle |
| Display Size | Slender/Compact |
| Series | Hospital Grade |
| Maximum Horsepower | 0.5 |
| Amperage | 15 A |
| Application | Slender/Compact Hospital Grade |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Wattage | 1875 W |
| Carton Quantity | 10 |
| Current Rating | 15 A |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Back and Side Wired Screw Terminals |
| Contact Material | Brass |
| Overall Depth | 1.1 in |
| Grade | Hospital Grade Fed. Spec. |
| Connection Orientation | Straight |
| Shrouded | No |
| Flange Type | Non-Flanged |
| Wire Connection Type | Screw Terminals |
| Housing Material | Thermoplastic |
| Face Plate Width | 1.3 in |
| Maximum Wire Size | 10 AWG |
| NEMA Enclosure Rating | 1 |
| Market | Commercial |
| NEMA Receptacle Configuration | 5-15R |
| Polarized | Yes |
| Surge Protection | No |
| GFCI | No |
| Maximum Operating Temperature | 167 deg F |
| Mount Hole Center-to-Center Height | 3.3 in |
| Resistance Properties | Impact Resistant |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| For Location | Indoor |
| Grounding | Grounded |
| Mount Type | Flush |
| Horsepower Rating | 0.5 HP |
| Includes Mounting Hardware | Yes |
| Cover Type | No Cover |
| AFCI | No |
| Housing Color | White |
| UL 94 Flammability Rating | V-0 |
| Minimum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40 deg F |
| Face Plate Height | 2.7 in |
| Device Grade | Compact Slender |
| Receptacle Type | Standard |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Device Color | White |
| Poles and Wires | 2 Pole, 3 Wire |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Certifications | FED SPEC Listed |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Dielectric Voltage | Withstands 2,000V minimum |
| Current Interrupting | Certified for current interrupting at full rated current |
| Flammability | UL 94 V-0 |
| Height | 1.05 in |
| Voltage Rating Description | 125 V |
| Amperage Rating | 15 A |
| Item Type | Traditional Duplex |
| Horsepower - Maximum | 0.5 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 3.28 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 1.33 in |
| Current / Amperage Rating | 15 A |
| Material - Mounting Hardware | Screw Mounting |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Package Quantity | 1 |
