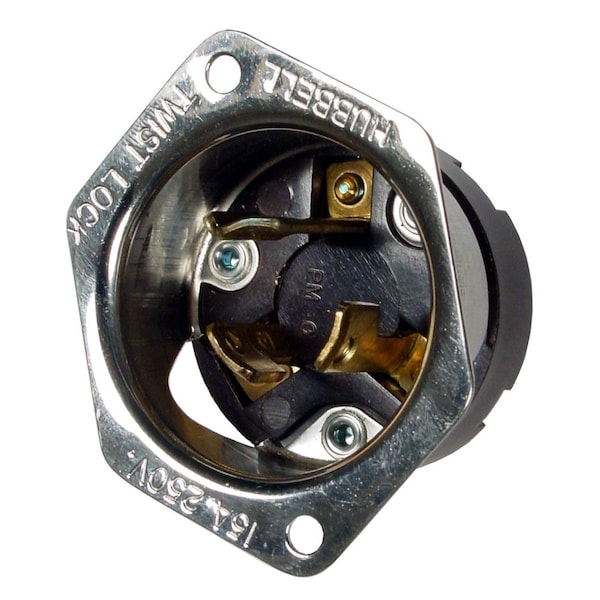

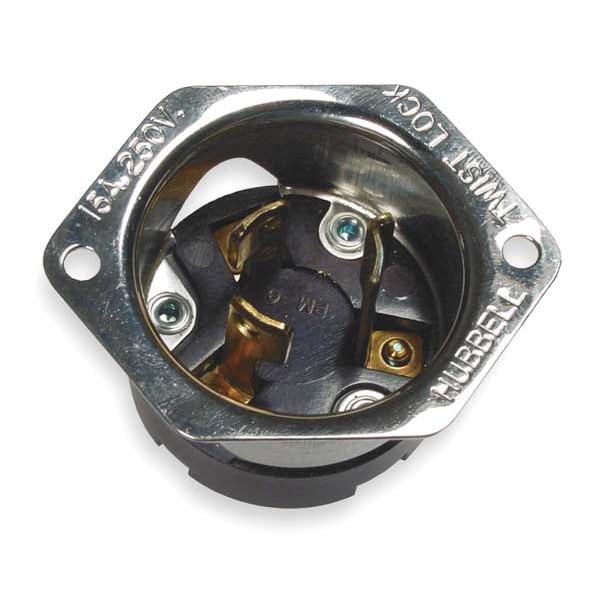

Entrada con seguro de brida de 15 amperios, 2 polos, 3 cables, 250VCA L6-15P WT
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L6-15 |
| Voltage | 250V AC |
| Amps | 15 |
| Color | Gray |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Stainless Steel |
| Special Features | With Stainless Steel Plate |
| Standards | CSA C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | General Use |
| HP | 2.0 |
| NEMA Rating | 12, 4X |
| Mounting Type | Flush Mount |
| IP Rating | IP20 |
| Blade Material | Brass |
| Number of Blades | 3 |
| Horsepower Rating | 2 HP |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| For Location | Indoor |
| Shrouded | No |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| For Environment | Dry |
| Minimum Wire Size | 18 AWG |
| Flange Material | Stainless Steel |
| Face Plate Height | 2.31 in |
| Face Diameter | 1-1/2 in |
| Includes | Mounting Screws |
| Maximum Wire Size | 10 AWG |
| Overall Depth | 1.09 in |
| Maximum Operating Temperature | 75 deg C |
| Voltage Rating | 250V AC |
| Resistance Properties | Heat Resistant |
| Flange Type | Flanged |
| Current Rating | 15 A |
| Grounding | Grounded |
| NEMA Plug Configuration | L6-15P |
| UL 94 Flammability Rating | HB |
| NEMA Enclosure Rating | 12, 4X |
| Minimum Operating Temperature | -40 Degrees C |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.15 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | 15A #14 AWG |
| Package Quantity | 1 |
