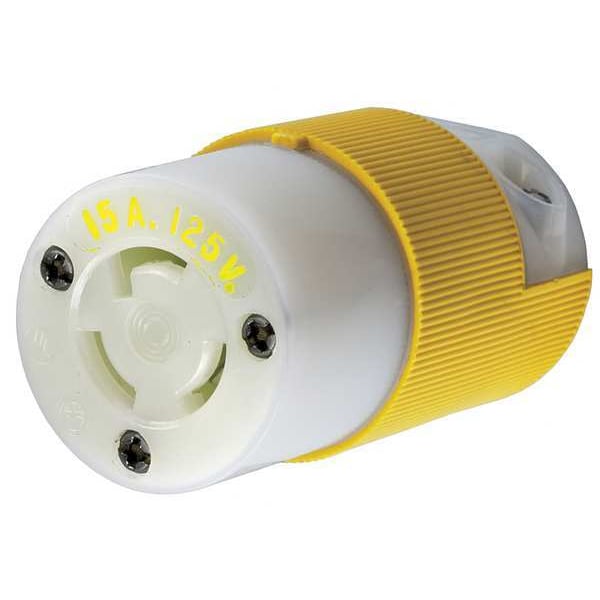

15A Locking Plug 2P 3W 125VAC L5-15P YL
| Item - Plugs and Receptacles | Locking Connector |
|---|---|
| Item | Locking Connector |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 1.53 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-15P |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Color | Yellow |
| Material | Nylon |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Corrosion Resistant | Yes |
| Grade | Industrial |
| Cord Size | 0.23 to 0.72 in |
| Voltage | 125VAC |
| NEMA Configuration | L5-15 |
| Amps | 15 |
| Color - Plugs and Receptacles | Yellow |
| Antimicrobial | No |
| Special Features | Corrosion Resistant |
| HP | 1/2 |
| Application | Heavy Duty Industrial |
| Minimum Wire Size | 18 AWG |
| Shrouded | No |
| Midget Locking | No |
| NEMA Receptacle Configuration | L5-15R |
| For Environment | Dry |
| Minimum Operating Temperature | -40 deg C |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Current Rating | 15 A |
| Outside Diameter | 1.527 in |
| For Maximum Cable Diameter | 0.72 in |
| Voltage Rating | 125V AC |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| For Minimum Cable Diameter | 0.23 in |
| Maximum Operating Temperature | 75 deg C |
| Market | Industrial |
| For Location | Indoor |
| Cap Type | No Cap or Cover |
| Overall Length | 1.53 in |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| Horsepower Rating | 0.5 HP |
| Housing Color | Yellow |
| Grounding | Grounded |
| Maximum Wire Size | 10 AWG |
| Wire Size | #18 AWG to #10 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact) |
| Weight (Lbs.) | 0.2 |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Nema Rating | L5-15R |
| Width | 1.53 in |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | 15A Corrosion Resistant Insulgrip® Connector |
| Connectivity | Pressure Terminal Screws |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Cable Range | 0.23 to 0.72 in |
| Voltage Rating Description | 125 V |
| Height | 2.78 in |
| Current / Amperage Rating | 15 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Cord Range | 0.230"-0.720" |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Connector Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Insulation | Insulated Body |
| Display Size | Standard |
| Amperage Rating | 15 A |
| Dimensions | 1.53 in x 1.53 in x 2.78 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
