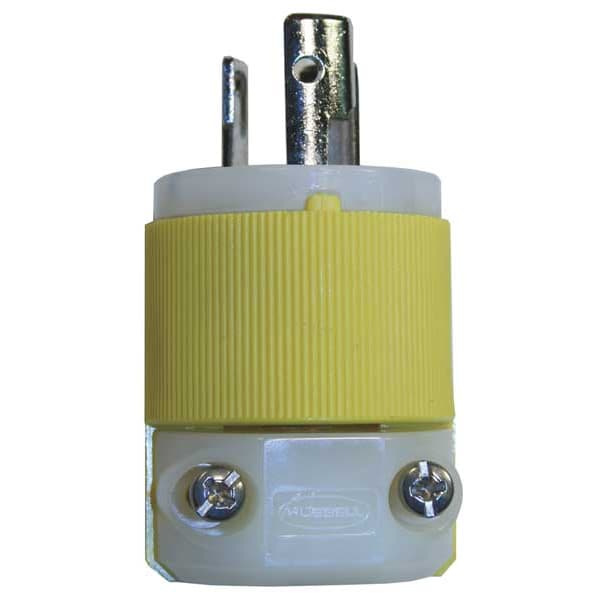

15A Marine Locking Plug 2P 3W 277VAC L7-15P YL
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 1.53 in |
| Grade - Plugs and Receptacles | Marine |
| Amps - Plugs and Receptacles | 15 |
| NEMA Plug Configuration - Plugs and Receptacles | L7-15P |
| Voltage - Plugs and Receptacles | 277V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| IP Rating | IP20 |
| Amps | 15 |
| Cord Size | 0.23 to 0.72 in |
| Material | Nylon |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Voltage | 277VAC |
| Grade | Marine |
| HP | 2 |
| Antimicrobial | No |
| Corrosion Resistant | No |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Application | Extra Heavy Duty Industrial |
| For Location | Indoor |
| Connection Orientation | Straight |
| Shrouded | No |
| Blade Material | Nickel-Plated Brass |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Body Length | 1.53 in |
| Number of Blades | 3 |
| NEMA Plug Configuration | L7-15P |
| Minimum Wire Size | 18 AWG |
| For Environment | Dry |
| Market | Industrial |
| Housing Color | Yellow |
| For Maximum Cable Diameter | 0.72 in |
| For Minimum Cable Diameter | 0.23 in |
| Outside Diameter | 1.527 in |
| Current Rating | 15 A |
| Horsepower Rating | 2 HP |
| UL 94 Flammability Rating | HB |
| Maximum Operating Temperature | 75 deg C |
| Overall Length | 1.53 in |
| Housing Material | Nylon |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant |
| Minimum Operating Temperature | -40 deg C |
| Voltage Rating | 277V AC |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #18 AWG to #10 AWG |
| Weight (Lbs.) | 0.2 |
| Item Type | Plug |
| Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Cord Mounted |
| Cord Type | All Listed Portables |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized |
| Type | Plugs |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 2 |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Range | 0.325"-0.655" |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Industry Standard(s) | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
| Nema Rating | L7-15P |
| Current / Amperage Rating | 15 A |
| Cable Range | 0.23 to 0.72 in |
| Height | 1.97 in |
| Connectivity | Pressure Terminal Screws |
| Dimensions | 1.53 in x 1.53 in x 1.97 in |
| Voltage Rating Description | 125 V |
| Width | 1.53 in |
| Package Quantity | 1 |
