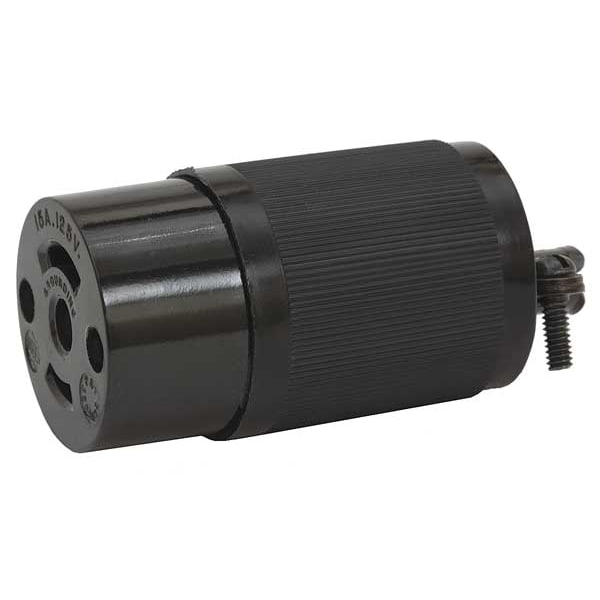

15A Midget Locking Connector 2P 3W 120VAC ML-2R BK
| Item | Midget Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Connector Body |
| Amps | 15 |
| Voltage | 120V AC |
| NEMA Configuration | ML2-15 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Cord Size | 0.281 to 0.421 in |
| Body Material | Nylon |
| IP Rating | IP20 |
| Material | .032" Bronze |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Phase | Single |
| Wire Connection Type | Spring Clamp Terminals |
| Contact Material | Brass |
| Midget Locking | Yes |
| NEMA Receptacle Configuration | ML2-15R |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40 deg C |
| UL 94 Flammability Rating | HB |
| Voltage Rating | 125V AC |
| Resistance Properties | Impact Resistant |
| Horsepower Rating | 2 HP |
| For Minimum Cable Diameter | 0.281 in |
| Grounding | Grounded |
| Overall Length | 1.17 in |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 75 deg C |
| Current Rating | 15 A |
| Outside Diameter | 1.172 in |
| For Location | Indoor |
| Cap Type | No Cap or Cover |
| Minimum Wire Size | 14 AWG |
| Housing Color | Black |
| Market | Industrial |
| Housing Material | Nylon |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.421 in |
| Shrouded | No |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | 2,000V minimum |
| Weight | 0.1 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Type | Connector Body |
| Material - Mounting Hardware | Cord Mounted |
| Amperage Rating | 15 A |
| Cable Range | 0.281 to 0.421 in |
| Display Size | Midget Locking |
| Height | 2.42 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Application | Heavy Duty Industrial |
| Item Type | 15A Connector |
| Current / Amperage Rating | 15 A |
| Wire Size | #18 AWG to #14 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 1.17 in |
| Conductor Range | #14 AWG to #12 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Nema Rating | ML-2R |
| Connectivity | Pressure Terminal Screws |
| Cord Range | 0.281"-0.421" |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Insulation | Insulated Body |
| Length | 1.17 in |
| Voltage Rating Description | 125 V |
| Dimensions | 1.17 in x 1.17 in x 2.42 in |
| Package Quantity | 1 |
