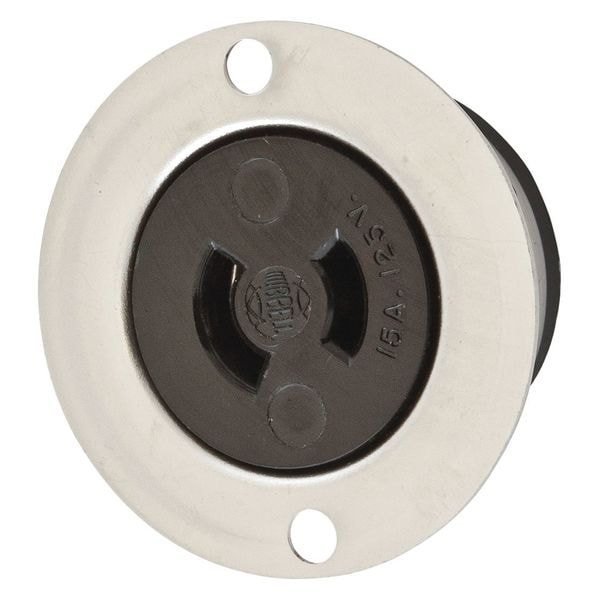

15A Midget Locking Flanged Receptacle 2P 2W 120VAC
| Item | Midget Locking Flanged Receptacle |
|---|---|
| NEMA Configuration | ML1-15 |
| Voltage | 120V AC |
| Amps | 15 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Phase | Single |
| Wiring Style | Standard |
| Body Material | Nylon |
| Flange Material | Stainless Steel |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Special Features | Molded In or Stamped On |
| IP Rating | IP20 |
| Material | Nickel plated |
| Cover Type | No Cover |
| Number of Gangs | 1 |
| Voltage Rating | 125V AC |
| Connection Orientation | Straight |
| Current Rating | 15 A |
| Maximum Wire Size | 14 AWG |
| Grounding | Non-Grounded |
| NEMA Enclosure Rating | 1 |
| AFCI | No |
| For Environment | Dry |
| Polarized | Yes |
| Includes Mounting Hardware | Yes |
| Flange Type | Flanged |
| Housing Color | Silver |
| UL 94 Flammability Rating | HB |
| Flange Shape | Round |
| Minimum Operating Temperature | -40 Degrees C |
| Resistance Properties | Heat Resistant |
| For Location | Indoor |
| NEMA Receptacle Configuration | ML1-15R |
| Housing Material | Stainless Steel |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 deg C |
| Includes | Mounting Flange |
| Market | Industrial |
| Minimum Wire Size | 18 AWG |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Lock Type | Twist-lock |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | Bronze |
| Weight (Lbs.) | 0.05 |
| Wire Size | 15A #14 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Midget Locking |
| Application | Heavy Duty Industrial |
| Nema Rating | ML-1R |
| Dimensions | 1.63 in x 1.63 in x 0.78 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 1.63 in |
| Height | 0.78 in |
| Connectivity | Screw Terminals |
| Type | Flanged Receptacle |
| Voltage Rating Description | 125 V |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | Flanged Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Amperage Rating | 15 A |
| Width | 1.63 in |
| Current / Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Insulation | Insulated Body |
| Package Quantity | 1 |
