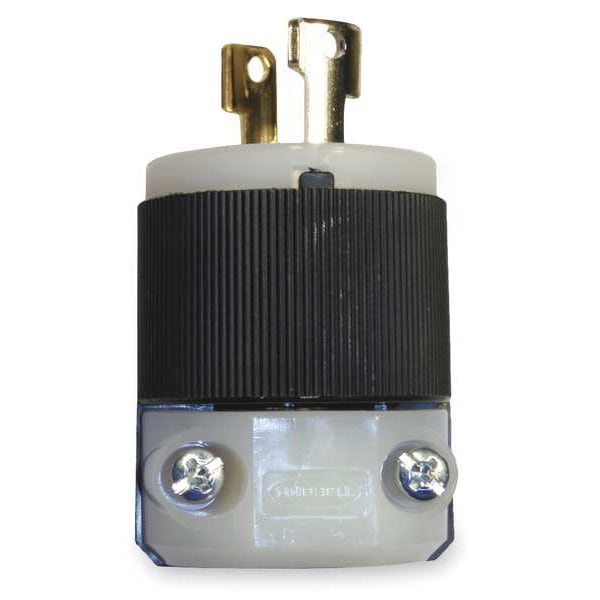

Enchufe de bloqueo de torsión de 15 amperios, 2 polos, 2 cables 125VAC L1-15P en negro/blanco.
| Item | Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 1.96 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 |
| NEMA Plug Configuration - Plugs and Receptacles | L1-15P |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Phase | Single |
| Antimicrobial | No |
| Grade | Industrial |
| HP | 1/2 |
| IP Rating | IP20 |
| NEMA Configuration | L1-15P |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Color | Black, White |
| Boot Code | A |
| Color - Plugs and Receptacles | Black, White |
| Amps | 15 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Material | Nylon |
| Cord Size | 0.23 to 0.72 in |
| Application | Industrial, Commercial |
| Grounding | Non-Grounded |
| For Location | Indoor |
| For Environment | Dry |
| For Minimum Cable Diameter | 0.23 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Wire Connection Type | Screw Terminals |
| Polarized | Yes |
| Voltage Rating | 125V AC |
| NEMA Plug Configuration | L1-15P |
| Market | Industrial, Commercial |
| Body Length | 1.96 in |
| Blade Material | Brass |
| Minimum Operating Temperature | -40 deg C |
| Shrouded | No |
| Current Rating | 15 A |
| Minimum Wire Size | 14 AWG |
| Housing Material | Composite |
| Housing Color | Black, White |
| Overall Length | 1.96 in |
| Horsepower Rating | 0.5 HP |
| Maximum Operating Temperature | 75 deg C |
| Outside Diameter | 1.527 in |
| Number of Blades | 3 |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 0.72 in |
| Wire Size | #14 AWG to #12 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.15 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Industry Standard(s) | Certified to CSA C22.2 No. 42 Fed. Spec W-C-596 Listed to UL 498 |
| Current / Amperage Rating | 15 A |
| Horsepower - Maximum | 0.5 |
| Dimensions | 1.96 in x 1.52 in x 1.52 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Width | 1.52 in |
| Connectivity | Pressure Terminal Screws |
| Cord Range | 0.230"-0.720" |
| Dielectric Strength | Withstands 2,000V minimum |
| Cable Range | 0.23 to 0.72 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized |
| Item Type | Plug |
| Type | Plugs |
| Material - Mounting Hardware | Cord Mounted |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L1-15P |
| Height | 1.52 in |
| Voltage Rating Description | 125 V |
| Cord Type | All Listed Portables |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
