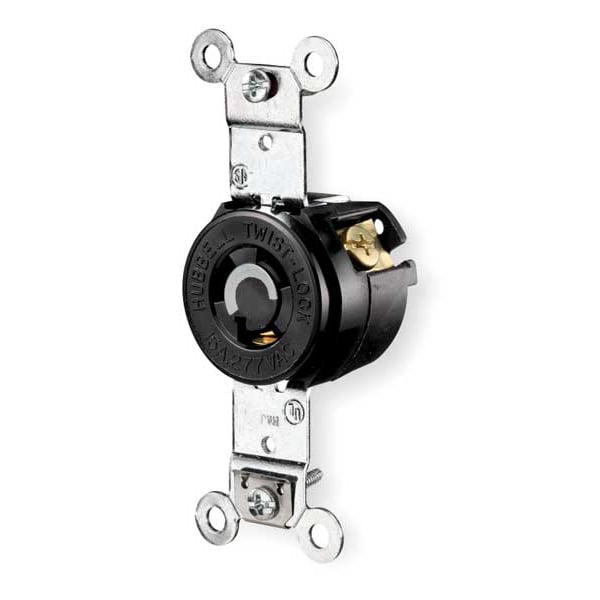

Receptáculo Twist-Lock de 15A 2P 3W 277VAC L7-15R Negro.
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L7-15 |
| Voltage | 277V AC |
| Amps | 15 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Grade | Industrial |
| NEMA Rating | 12, 4X |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| HP | 2.0 |
| Mounting Type | Flush Mount |
| Special Features | With Cover |
| Material | Stainless Steel |
| IP Rating | IP20 |
| Wire Connection Type | Screw Terminals |
| Polarized | Yes |
| Connection Orientation | Straight |
| Voltage Rating | 277V AC |
| Maximum Wire Size | 10 AWG |
| Flange Type | Non-Flanged |
| Housing Material | Thermoplastic |
| Includes | Mounting Strap |
| For Environment | Dry |
| Cover Type | No Cover |
| Grounding | Grounded |
| Shrouded | No |
| Contact Material | Brass |
| Flange Diameter | Not Applicable |
| Flange Width | Not Applicable |
| Horsepower Rating | 2 HP |
| Mount Type | Flush |
| Current Rating | 15 A |
| Housing Color | Brown |
| AFCI | No |
| UL 94 Flammability Rating | HB |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| For Location | Indoor |
| NEMA Enclosure Rating | 1 |
| Number of Gangs | 1 |
| Minimum Wire Size | 18 AWG |
| NEMA Receptacle Configuration | L7-15R |
| Flange Height | Not Applicable |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Impact Resistant |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Weight (Lbs.) | 0.15 |
| Spring Material | .031" Brass |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Base Material | RTP |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Item Type | 15A Single Flush Receptacle, Grounding Single Flush Receptacle |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Horsepower - Maximum | 2 |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| Dimensions | 3.28 in x 1.53 in x 1.27 in |
| Application | Heavy Duty Industrial |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 1.53 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Height | 1.27 in |
| Connectivity | Back and Side Wired |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Length | 3.28 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Type | Receptacle |
| Voltage Rating Description | 277 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
