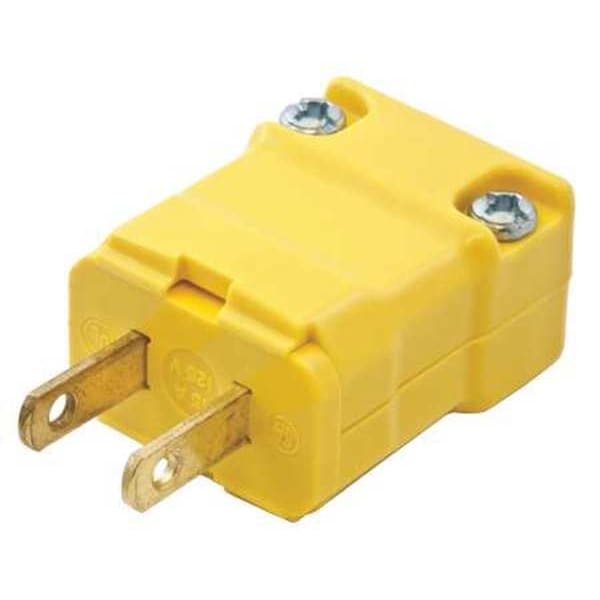

2 Wire Industrial Straight Blade Plug 125VAC 15A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 1-15P |
| Number of Wires | 2 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Yellow |
| Number of Poles | 2 |
| Amps | 15 |
| Voltage | 125VAC |
| Cord Size | 0.218 to 0.385 in |
| Color - Plugs and Receptacles | Yellow |
| IP Rating | IP20 |
| Special Features | Corrosion resistant |
| Phase | Single |
| Corrosion Resistant | Yes |
| Grade | Industrial |
| Material | Nylon |
| Standards | CSA Certified C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706 |
| HP | 1/2 |
| Type | Plug |
| NEMA Rating | 1-15P |
| Housing Material | Nylon |
| Horsepower Rating | 0.5 HP |
| Housing Color | Yellow |
| NEMA Plug Configuration | 1-15P |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 18 AWG |
| Current Rating | 15 A |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40 deg F |
| Voltage Rating | 125V AC |
| Body Length | 1.68 in |
| Market | Industrial, Commercial |
| Number of Blades | 2 |
| Polarized | No |
| For Maximum Cable Diameter | 0.385 in |
| Connection Orientation | Straight |
| Grounding | Non-Grounded |
| Maximum Operating Temperature | 167 deg F |
| Insulation Material | Nylon |
| For Minimum Cable Diameter | 0.218 in |
| Operating Temp. | Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Body Style | Straight |
| Ground Screw Material | Steel |
| Weight (Lbs.) | 0.1 |
| Enhancement | Un Polarized |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Cord Clamp Material | Noryl |
| Ground Contact Blade Material | Brass |
| Dielectric Strength | Withstands 2,000V minimum |
| Flammability | UL 94 HB |
| Terminal Screw Material | Steel |
| Contact Blades Material | .060" Brass |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Wire Size | #18 AWG to #14 AWG |
| Voltage Rating Description | 125 V |
| Style | Non-Grounding |
| Length | 1.68 in |
| Dimensions | 1.68 in x 1-1/4 in x 0.88 in |
| Width | 1-1/4 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Molded Rating on Device Face Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Wattage | 1875 W |
| Height | 0.88 in |
| Series | Valise |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item Type | Valise Plug |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Horsepower - Maximum | 0.5 |
| Package Quantity | 1 |
