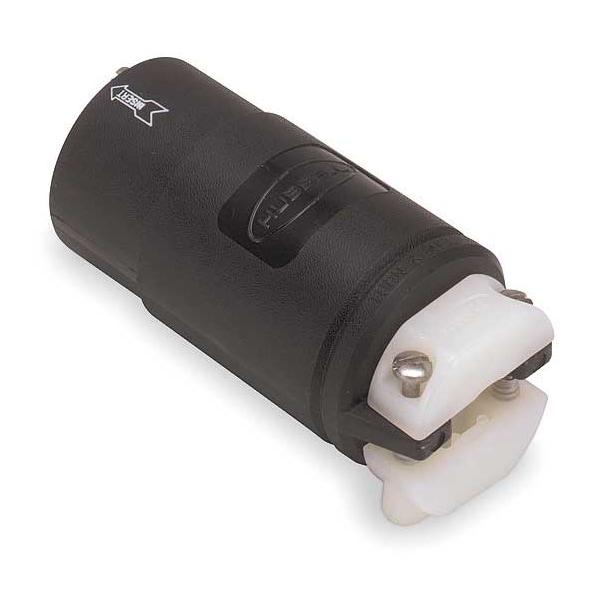

20/10A Locking Connector 2P 3W 125VAC/DC 250VDC 480VAC
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 20/10/10 |
| NEMA Plug Configuration - Plugs and Receptacles | 20A, Non-NEMA |
| Amps | 20/10/10 |
| Voltage - Plugs and Receptacles | 125V AC/DC, 250V DC, 480V AC |
| Voltage | 125VAC/DC, 250VDC, 480VAC |
| NEMA Configuration | Non-NEMA |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Gray |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Gray |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | No |
| Grade | Industrial/Commercial |
| Phase | Single |
| Standards | UL Listed |
| Cord Size | 0.3 to 0.65 in |
| Antimicrobial | No |
| Power Indicator | No |
| IP Rating | IP30 |
| Material | Nylon |
| Special Features | Terminals identified in accordance with UL 498 |
| Body Material | Black Thermoset |
| Minimum Wire Size | 16 AWG |
| Housing Color | Black |
| Wire Connection Type | Screw Terminals |
| For Location | Indoor |
| For Environment | Dry |
| UL 94 Flammability Rating | HB |
| Overall Length | 1.63 in |
| Grounding | Grounded |
| Shrouded | No |
| Market | Industrial |
| Cap Type | No Cap or Cover |
| For Minimum Cable Diameter | 0.32 in |
| Maximum Operating Temperature | 75 deg C |
| NEMA Receptacle Configuration | Non-NEMA |
| Midget Locking | No |
| Current Rating | 20 A |
| Contact Material | Bronze |
| Connection Orientation | Straight |
| Resistance Properties | Impact Resistant |
| Minimum Operating Temperature | -40 deg C |
| Outside Diameter | 1.719 in |
| Maximum Wire Size | 12 AWG |
| Power Indicating Light | No |
| Housing Material | Nylon |
| For Maximum Cable Diameter | 0.66 in |
| Voltage Rating | 125V AC |
| Weight | 0.4 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flame Resistant | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Dia. Range | .320"- .660" |
| Type | Connector Body |
| Voltage Rating Description | 125 V |
| Width | 1.72 in |
| Item Type | Female Connector |
| Dimensions | 1.63 in x 1.72 in x 3.56 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #12 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Cord Range | 0.320"-.660" |
| Material - Mounting Hardware | Cord Mounted |
| Wire Size | #16 AWG to #12 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Height | 3.56 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Cable Range | 0.32 to 0.66 in |
| Length | 1.63 in |
| Connectivity | Pressure Terminal Screws |
| Insulation | Insulated Body |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Heavy Duty Industrial |
| Amperage Rating | 20 A |
| Display Size | Standard |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
