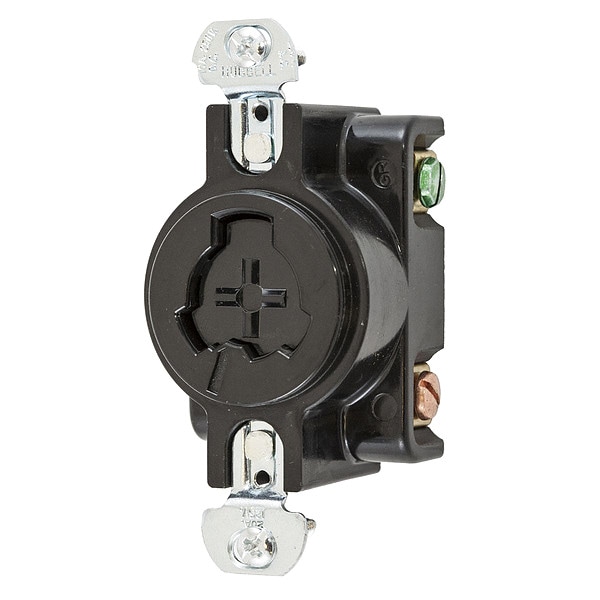

20/10A Locking Receptacle 2P 3W 125VAC/DC 250VDC 480VAC
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 125V AC/DC, 250V DC, 480V AC |
| Amps | 20/10/10 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Grade | Industrial |
| Material | Nylon/Thermoplastic Polyester |
| NEMA Rating | 12, 4, 4X |
| Special Features | With Locking Cover |
| IP Rating | IP30 |
| Standards | UL Listed |
| Mounting Type | Flush Mount |
| Wire Connection Type | Screw Terminals |
| Contact Material | Bronze |
| Resistance Properties | Heat Resistant |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Flange Height | Not Applicable |
| Housing Color | Black |
| UL 94 Flammability Rating | V-0 |
| Maximum Wire Size | 10 AWG |
| Flange Type | Non-Flanged |
| Connection Orientation | Straight |
| Polarized | Yes |
| Minimum Operating Temperature | -40 Degrees C |
| Number of Gangs | 1 |
| NEMA Receptacle Configuration | Non-NEMA |
| For Location | Indoor |
| Cover Type | No Cover |
| Market | Industrial |
| Shrouded | No |
| Minimum Wire Size | 14 AWG |
| For Environment | Dry |
| AFCI | No |
| NEMA Enclosure Rating | 1 |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| Housing Material | Thermoplastic |
| Voltage Rating | 125V AC |
| Mount Type | Flush |
| Current Rating | 20 A |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Base Material | Black Thermoset |
| Wire Size | 15A #14AWG; 20A #12AWG |
| Spring Material | Bronze |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | UL 94 V0 |
| Weight (Lbs.) | 0.25 |
| Lock Type | Hubbellock |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 125 V |
| Height | 1.66 in |
| Material - Mounting Hardware | Screw Mounting |
| Type | Receptacle |
| Length | 3.28 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Application | Heavy Duty Industrial |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Dimensions | 3.28 in x 1.62 in x 1.66 in |
| Item Type | 20A Grounding Hubbellock® Single Receptacle |
| Amperage Rating | 20 A |
| Width | 1.62 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
