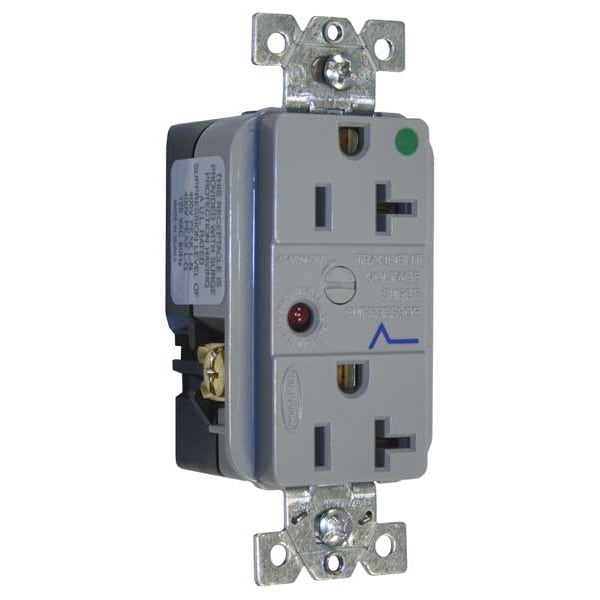

20A Duplex Decorator Receptacle 125VAC 5-20R GY
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Sub-Category | Duplex Receptacles |
| Amps | 20 |
| Power Indicator | No |
| Wiring Method | Side |
| Wiring Method - Plugs and Receptacles | Side |
| Weather Resistant - Plugs and Receptacles | No |
| Material | Composite |
| Weather Resistant | No |
| Mounting Type | Flush |
| Number of Gangs | 1 |
| NEMA Configuration | 5-20 |
| Outlet Type | Decorator |
| Standards | CSA Certified C22.2 No. 42, UL 498, UL E2186 |
| Phase | Single Phase |
| Number of Wires | 3 |
| Item | Surge Protection Receptacles |
| Voltage | 125VAC |
| Corrosion Resistant | No |
| Color - Plugs and Receptacles | Gray |
| Number of Poles | 2 |
| Color | Gray |
| HP | 1 hp |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Type | Duplex |
| Current Rating | 20 A |
| Amperage | 20 A |
| Voltage Rating | 125 V |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | 5-20R |
| Mounting Hardware Material | Mounting Screws |
| Indicator Type | LED and Audible Alarm |
| Connectivity | Terminal Screws |
| Application | Decorator Duplex with Light and Alarm |
| Brand | Hubbell Wiring Device-Kellems |
| Series | Hospital Grade |
| Carton Quantity | 10 |
| Outlet | Straight Blade |
| Response Time | 5 |
| Display Size | Standard |
| Frequency | 60 Hz |
| Face Plate Height | 2.6 in |
| Mount Type | Flush |
| For Location | Indoor |
| Connection Orientation | Straight |
| Grade | Hospital Grade Fed. Spec. |
| AFCI | No |
| Face Plate Width | 1.8 in |
| Resistance Properties | Impact Resistant |
| Mount Hole Center-to-Center Height | 3.3 in |
| Shrouded | No |
| Includes | Grounding Clip |
| Cover Type | No Cover |
| GFCI | No |
| NEMA Receptacle Configuration | 5-20R |
| Housing Material | Composite |
| Wire Connection Type | Screw Terminals |
| Minimum Operating Temperature | 32 deg F |
| NEMA Enclosure Rating | 1 |
| UL 94 Flammability Rating | V-2 |
| Receptacle Type | Duplex |
| Overall Depth | 1.2 in |
| Horsepower Rating | 1 HP |
| Grounding | Grounded |
| Surge Protection | Yes |
| Flange Type | Non-Flanged |
| Maximum Operating Temperature | 140 deg F |
| Housing Color | Gray |
| Polarized | Yes |
| Poles and Wires | 2 Pole, 3 Wire |
| Device Grade | Heavy Duty Spec Grade |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186 |
| Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Indicator(s) Type | LED and Audible Alarm |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Surge Protection Receptacles |
| Current / Amperage Rating | 20 A |
| Frequency Rating | 60 Hz |
| Material - Mounting Hardware | Mounting Screws |
| Voltage Rating Description | 125 V |
| Performance | Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| Package Quantity | 1 |
