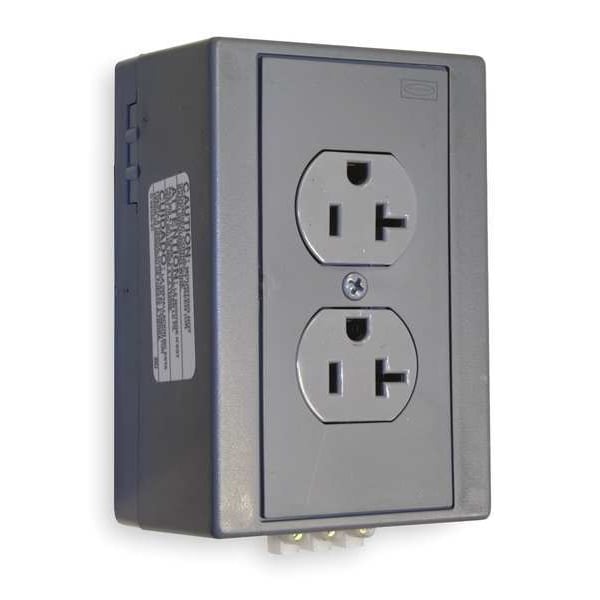

Duplicador de carril DIN de 20A con receptáculo doble 125VAC 5-20R GY
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant | No |
| Amps - Plugs and Receptacles | 20 |
| HP | 1 hp |
| Power Indicator | No |
| Wiring Method - Plugs and Receptacles | Side |
| Item | DIN Rail Receptacle |
| Weather Resistant - Plugs and Receptacles | No |
| Sub-Category | Duplex Receptacles |
| Voltage | 125VAC |
| Phase | Single |
| Standards | UL Listed |
| Number of Poles | 2 |
| Corrosion Resistant | No |
| NEMA Configuration | 5-20 |
| Wiring Method | Side |
| Mounting Type | Panel |
| Material | Plastic |
| Outlet Type | Duplex |
| Number of Wires | 3 |
| Amps | 20 |
| Color - Plugs and Receptacles | Gray |
| Color | Gray |
| Number of Gangs | 1 |
| Type | Duplex Receptacle, Standard Receptacle |
| Flange Shape | Square |
| Flange Type | Flanged |
| Current Rating | 20 A |
| Grounding | Grounded |
| Housing Material | Nylon |
| Shrouded | No |
| Housing Color | Gray |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Mount Type | Surface |
| NEMA Enclosure Rating | 1 |
| Hub Type | Feed Through |
| Connection Orientation | Straight |
| Horsepower Rating | 1 HP |
| Grade | General Use |
| GFCI | No |
| Number of Outlets | 1 |
| Includes Mounting Hardware | Yes |
| Cover Type | No Cover |
| Voltage Rating | 125 V |
| NEMA Receptacle Configuration | 5-20R |
| AFCI | No |
| Includes | Mounting Hardware |
| Surge Protection | No |
| Market | Industrial |
| Overall Depth | 2-1/2 in |
| Certifications | CSA Certified, UL Listed |
| Device Rating | 20A, 125V |
| DRUB Mounting | Vertical |
| DIN Rail Utility Box Variety | Complete Unit |
| Construction | Molded and Fabricated |
| Horsepower - Maximum | 1 |
| Cable Entry | Terminals |
| Knockouts | None |
| Dimensions | 5.62 in x 3.31 in x 2.54 in |
| Current / Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Height | 2.54 in |
| Item Type | Complete Unit |
| Material - Mounting Hardware | Mount |
| Application | Unit Pre-Wired with Duplex Receptacles |
| Length | 5.62 in |
| Nema Rating | 5-20R |
| Width | 3.31 in |
| Industry Standard(s) | UL Listed |
| Amperage Rating | 20 A |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
