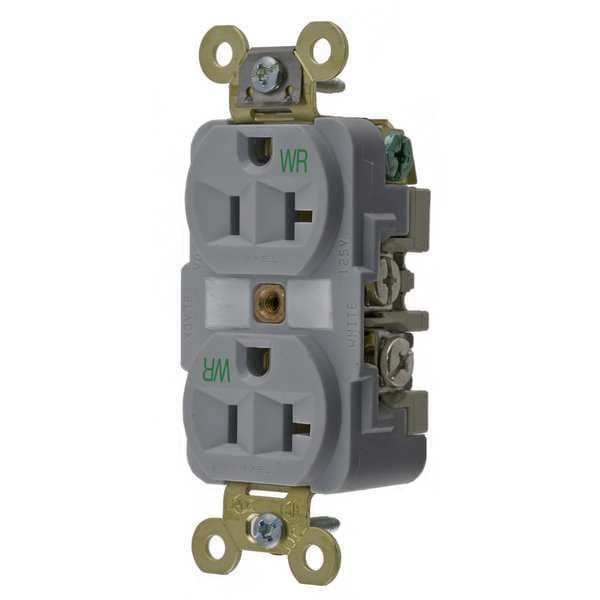

Contacto dúplex de 20 amperes 125VAC 5-20R GY
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Harsh and Heavy Use Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Number of Wires | 3-Wire |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Method - Plugs and Receptacles | Side, Back |
| NEMA Configuration | 5-20 |
| Color | Gray |
| Corrosion Resistant | No |
| Description | Finder Groove, Grounding |
| Outlet Type | Duplex |
| Weather Resistant | Yes |
| Mounting Type | Flush |
| Amps - Plugs and Receptacles | 20 |
| Color - Plugs and Receptacles | Gray |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Item | Traditional Duplex |
| Sub-Category | Duplex Receptacles |
| Material | Nylon/Reinforced PET |
| HP | 1 hp |
| Weather Resistant - Plugs and Receptacles | Yes |
| Amps | 20 |
| Voltage | 125VAC |
| Number of Gangs | 1 |
| Wiring Method | Back, Side |
| UPC | 783585000000 |
| Display Size | Standard Sized Product |
| Environmental Rating | Weather Resistant |
| Voltage Rating | 125 VAC |
| Height | 1.19 in |
| Nema Rating | 5-20R |
| Type | Weather Resistant |
| Wattage | 2500 W |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Style | Finder Groove Face |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.25 lb |
| Mounting Hardware Material | Screw Mounting |
| Length | 3.28 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Amperage | 20 A |
| Brand | Hubbell Wiring Device-Kellems |
| Application | Extra Heavy Duty Specification Grade |
| Carton Quantity | 10 |
| Wire Size | #12 AWG to #10 AWG |
| Width | 1.65 in |
| Current Rating | 20 A |
| Maximum Horsepower | 1 |
| Series | Extra Heavy Duty |
| Minimum Wire Size | 12 AWG |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-20R |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg F |
| Horsepower Rating | 1 HP |
| Contact Material | Nickel-Plated Brass |
| Includes Mounting Hardware | Yes |
| Shrouded | No |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Receptacle Type | Duplex |
| UL 94 Flammability Rating | V-2, V-0 |
| Grounding | Grounded |
| Surge Protection | No |
| Flange Type | Non-Flanged |
| GFCI | No |
| Face Plate Width | 1.7 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Polarized | Yes |
| Overall Depth | 1.2 in |
| Maximum Wire Size | 10 AWG |
| Mount Type | Flush |
| Resistance Properties | Weather Resistant |
| Wire Connection Type | Screw Terminals |
| Housing Material | Nylon, Reinforced PET |
| Face Plate Height | 2.7 in |
| Cover Type | No Cover |
| Housing Color | Gray |
| Market | Industrial |
| AFCI | No |
| Maximum Operating Temperature | 167 deg F |
| Grade | Federal Specification |
| Mounting Strap Material | .050" Brass |
| Base Material | Reinforced PET |
| Receptacle Style | Duplex |
| Terminal Accommodation | stranded, solid copper wire only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Receptacle Grade | Extra Heavy Duty, Weather Resistant |
| Terminal Screw Material | #10-32 Silicon Bronze |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Certification | -UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Face Style | Finder Groove |
| Ground Screw Material | #10-32 Silicon Bronze |
| Device Color | Gray |
| Current Interrupting | Certified for current interrupting at full rated current |
| Mounting Screw Material | Steel-Zinc Plated |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Rating | 15A, 125V |
| Power Contacts Material | .037" Brass |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Auto Ground Clip Material | Stainless Steel |
| NEMA No. | 5 to 20 R |
| Top Material | Nylon |
| Flammability | Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better |
| Standard | NEMA |
| Other Available Colors | Brown, Black, Gray, Ivory, Red, White |
| Face Shape | Traditional |
| Horsepower | 1 |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Package Quantity | 1 |
