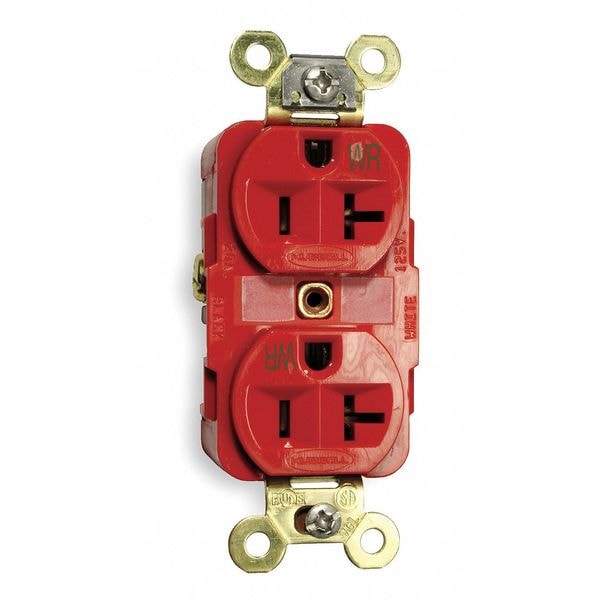

20A Duplex Receptacle 125VAC 5-20R RD
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Harsh and Heavy Use Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Mounting Type | Flush |
| Weather Resistant - Plugs and Receptacles | Yes |
| Weather Resistant | Yes |
| HP | 1 hp |
| Sub-Category | Duplex Receptacles |
| Wiring Method | Back, Side |
| Description | Finder Groove, Grounding |
| Outlet Type | Duplex |
| Color | Red |
| Phase | Single Phase |
| Item | Traditional Duplex |
| Amps - Plugs and Receptacles | 20 |
| Number of Wires | 3-Wire |
| Material | Nylon/Reinforced PET |
| NEMA Configuration | 5-20 |
| Color - Plugs and Receptacles | Red |
| Voltage | 125VAC |
| Number of Poles | 2-Pole |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Corrosion Resistant | No |
| Amps | 20 |
| Number of Gangs | 1 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Wire Size | #12 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Back and Side Wired Screw Terminals |
| Display Size | Standard Sized Product |
| Type | Weather Resistant |
| Current Rating | 20 A |
| Mounting Hardware Material | Screw Mounting |
| Height | 1.19 in |
| Wattage | 2500 W |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.28 in |
| Amperage | 20 A |
| Series | Extra Heavy Duty |
| UPC | 783585000000 |
| Carton Quantity | 10 |
| Width | 1.65 in |
| Voltage Rating | 125 VAC |
| Nema Rating | 5-20R |
| Environmental Rating | Weather Resistant |
| Weight | 0.25 lb |
| Application | Extra Heavy Duty Specification Grade |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Brand | Hubbell Wiring Device-Kellems |
| Maximum Horsepower | 1 |
| Style | Finder Groove Face |
| Overall Depth | 1.2 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| AFCI | No |
| Housing Color | Red |
| Minimum Operating Temperature | -40 deg F |
| Surge Protection | No |
| GFCI | No |
| Resistance Properties | Weather Resistant |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Contact Material | Nickel-Plated Brass |
| Face Plate Height | 2.7 in |
| Receptacle Type | Duplex |
| Grounding | Grounded |
| NEMA Enclosure Rating | 1 |
| Flange Type | Non-Flanged |
| Minimum Wire Size | 12 AWG |
| Grade | Federal Specification |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Shrouded | No |
| Maximum Wire Size | 10 AWG |
| Housing Material | Nylon, Reinforced PET |
| Maximum Operating Temperature | 167 deg F |
| Face Plate Width | 1.7 in |
| Market | Industrial |
| NEMA Receptacle Configuration | 5-20R |
| Includes Mounting Hardware | Yes |
| Horsepower Rating | 1 HP |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2, V-0 |
| Polarized | Yes |
| Package Quantity | 1 |
