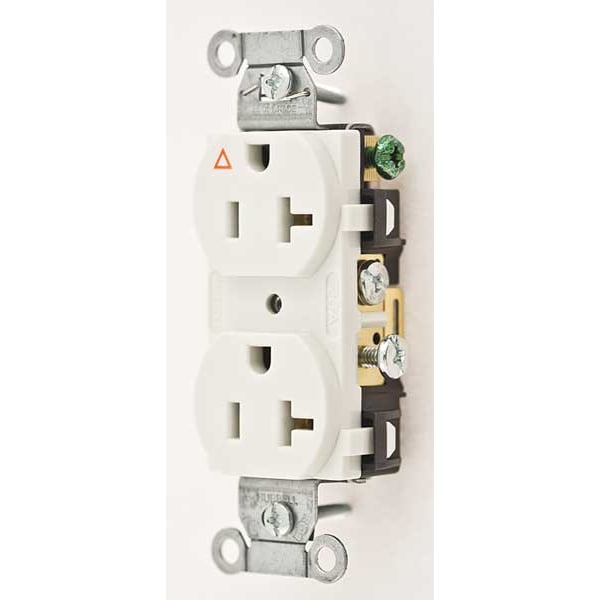

20A Duplex Receptacle 125VAC 5-20R WH
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Phase | Single Phase |
| Color | White |
| Weather Resistant | No |
| Special Features | Isolated Ground |
| Description | Smooth |
| Material | Nylon |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Corrosion Resistant | No |
| Mounting Type | Flush |
| Wiring Method | Back, Side |
| Number of Wires | 3-Wire |
| HP | 1 hp |
| Item | Traditional Duplex |
| Amps - Plugs and Receptacles | 20 |
| Color - Plugs and Receptacles | White |
| Amps | 20 |
| Number of Poles | 2-Pole |
| Outlet Type | Duplex |
| Voltage | 125VAC |
| NEMA Configuration | 5-20 |
| Sub-Category | Duplex Receptacles |
| Number of Gangs | 1 |
| Weather Resistant - Plugs and Receptacles | No |
| Power Indicator | No |
| Type | Grounding |
| Wire Size | #12 AWG to #10 AWG |
| Connectivity | Back and Side Wired Screw Terminals |
| Display Size | Standard Sized Product |
| Dimensions | 3.28 in x 1.57 in x 1.07 in |
| Style | Smooth Face |
| Brand | Hubbell Wiring Device-Kellems |
| Current Rating | 20 A |
| Nema Rating | 5-20R |
| Voltage Rating | 125 V |
| Carton Quantity | 10 |
| Maximum Horsepower | 1 |
| Amperage | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Series | Hubbell-PRO |
| Housing Material | Nylon |
| Grounding | Isolated Ground |
| Receptacle Type | Duplex |
| UL 94 Flammability Rating | V-2 |
| NEMA Enclosure Rating | 1 |
| Overall Depth | 1.1 in |
| Mount Type | Flush |
| Maximum Operating Temperature | 167 deg F |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Maximum Wire Size | 10 AWG |
| Mount Hole Center-to-Center Height | 3.3 in |
| NEMA Receptacle Configuration | 5-20R |
| Surge Protection | No |
| Face Plate Height | 2.7 in |
| Horsepower Rating | 1 HP |
| Market | Commercial, Industrial |
| For Location | Indoor |
| Grade | Federal Specification |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | White |
| GFCI | No |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Minimum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Polarized | Yes |
| Face Plate Width | 1.3 in |
| Shrouded | No |
| AFCI | No |
| Wire Connection Type | Screw Terminals |
| Dielectric Voltage | Withstands 2,000V minimum |
| Power Contact | .031" (.8) Brass |
| Face | Nylon |
| Ground Contacts | .031" Brass |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Device Color | White |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Flammability | UL 94 V-2 |
| Mounting Strap | Galvanized steel |
| Base | Nylon |
| Mounting Screws | Stainless Steel |
| Clamp | Nickel plated steel |
| Automatic Self-grounding Clip | Stainless steel |
| Terminal Screws | Brass |
| Current Interrupting | Certified for current interrupting at full rated current |
| Length | 3.28 in |
| Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Traditional Duplex |
| Horsepower - Maximum | 1 |
| Height | 1.07 in |
| Wattage | 2500 W |
| Voltage Rating Description | 125 V |
| Width | 1.57 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact°C |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Application | Hubbell-Pro Heavy Duty |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
