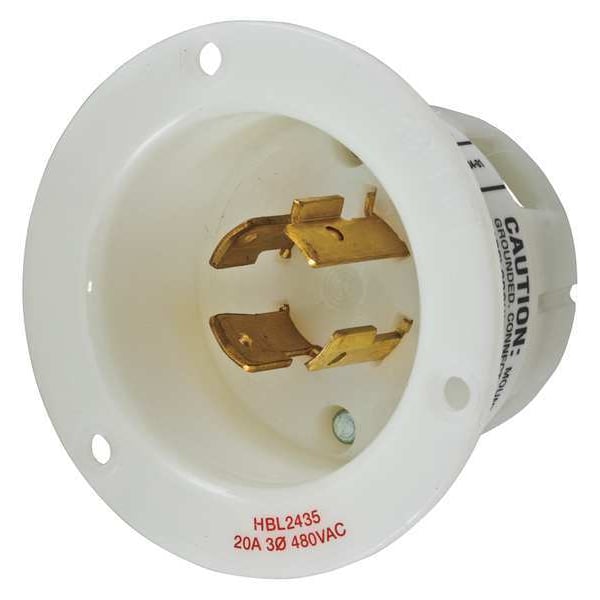

20A Flanged Twist-Lock Inlet 3P 4W 480VAC L16-20P WT
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L16-20 |
| Voltage | 480V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Mounting Type | Flush Mount |
| IP Rating | IP20 |
| Boot Code | E |
| HP | 5.0 |
| Standards | CSA C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Special Features | With Cover |
| Grade | General Use |
| Material | Thermoplastic Elastomer |
| NEMA Rating | 12, 4X |
| Housing Material | Nylon |
| Features | Accepts Slotted, Phillips, and Robertson Head Drivers |
| Shrouded | No |
| Housing Color | White |
| Includes | Mounting Screws |
| Includes Mounting Hardware | Yes |
| For Environment | Dry |
| Blade Material | Brass |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 8 AWG |
| Overall Depth | 2.27 in |
| Minimum Operating Temperature | -40 Degrees C |
| NEMA Enclosure Rating | 12, 4X |
| Flange Type | Flanged |
| Face Plate Width | 0.093 in |
| Number of Blades | 4 |
| Current Rating | 20 A |
| Flange Material | Steel |
| Maximum Operating Temperature | 75 deg C |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Resistance Properties | Moisture Resistant |
| Market | Industrial |
| Flange Diameter | 3.06 in |
| Horsepower Rating | 5 HP |
| For Location | Indoor |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | HB |
| NEMA Plug Configuration | L16-20P |
| Grounding | Grounded |
| Face Diameter | 2.23 in |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Wire Size | #12 AWG; #16 AWG - #8 AWG solid or stranded copper wire only. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Weight (Lbs.) | 0.25 |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Insulation | Insulated Body |
| Connectivity | Screw Terminals |
| Voltage Rating Description | 3 Phase 480 VAC |
| Type | Flanged Inlet |
| Width | 3.06 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Material - Mounting Hardware | Screw Mounting |
| Horsepower - Maximum | 5 |
| Application | Extra Heavy Duty Industrial |
| Dimensions | 3.06 in x 3.06 in x 2.27 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Height | 2.27 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Cord Range | 0.35 to 1.15 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3.06 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
