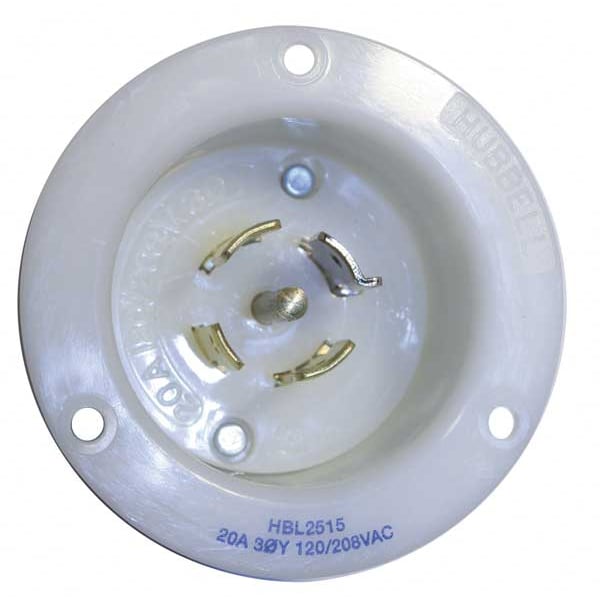

20A Flanged Twist-Lock Inlet 4P 5W 120/208VAC L21-20P WT
| Item | Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L21-20 |
| Voltage | 120/208V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Nylon |
| NEMA Rating | 12, 4X |
| HP | 2.0 |
| Boot Code | E |
| Grade | Industrial |
| Mounting Type | Flush Mount |
| IP Rating | IP20 |
| Special Features | With Cover |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| For Location | Indoor |
| Housing Material | Nylon |
| Number of Blades | 5 |
| Face Plate Height | 2.27 in |
| Maximum Wire Size | 8 AWG |
| Mount Type | Flush |
| Flange Type | Flanged |
| Maximum Surge Current | 20 A |
| NEMA Plug Configuration | L21-20P |
| Market | Industrial |
| Includes Mounting Hardware | Yes |
| Current Rating | 20 A |
| Shrouded | No |
| Maximum Operating Temperature | 75 deg C |
| Horsepower Rating | 2 HP |
| Wire Connection Type | Screw Terminals |
| Face Plate Width | 3.06 in |
| Minimum Operating Temperature | -40 Degrees C |
| Blade Material | Brass |
| Voltage Rating | 120/208V AC |
| Grounding | Grounded |
| NEMA Enclosure Rating | 12, 4X |
| Housing Color | White |
| Minimum Wire Size | 16 AWG |
| Weight (Lbs.) | 0.3 |
| Flange Material | Natural White Nylon |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Operating Temp. | Maximum Continuous 75A Deg C. Minimum -40A Deg C (w/o impact) |
| Insulation | Insulated Body |
| Display Size | Standard Sized Product |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 2.27 in |
| Application | Extra Heavy Duty Industrial |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 3.06 in |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Connectivity | Back Wired Screw Terminals |
| Width | 3.06 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Dimensions | 3.06 in x 3.06 in x 2.27 in |
| Amperage Rating | 20 A |
| Type | Flanged Inlet |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
