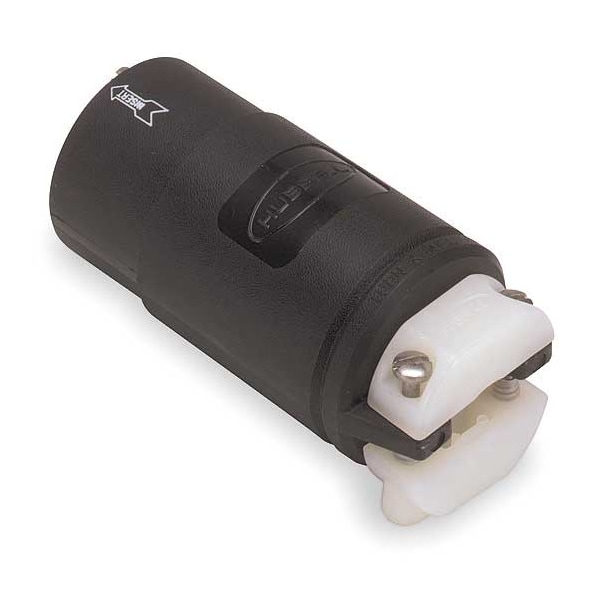

20A Hospital Locking Plug 2P 3W 125VAC GY
| Item | Standard |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 20A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2-Pole |
| Number of Wires | 3 |
| Phase | Single |
| Material | Composite |
| Grade | Hospital Grade |
| Antimicrobial | No |
| Color - Plugs and Receptacles | Black, White |
| Corrosion Resistant | No |
| IP Rating | IP20 |
| Standards | UL Listed |
| Color | Black |
| Cord Size | 0.32 to 0.66 in |
| Amps - Plugs and Receptacles | 20 |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 VAC |
| Cord Dia. Range | #14 AWG to #12 AWG |
| Number Of Conductors | 3-Wire Grounding |
| Current Rating | 20 A |
| Mounting Hardware Material | Cord Mounted |
| Carton Quantity | 20 |
| Brand | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Temp. Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage | 20 A |
| Insulation | Insulated Body |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Resistance Properties | Impact Resistant |
| UL 94 Flammability Rating | HB |
| Midget Locking | No |
| For Environment | Dry |
| Cap Type | No Cap or Cover |
| NEMA Receptacle Configuration | Non-NEMA |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Outside Diameter | 1.72 in |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Black |
| Maximum Operating Temperature | 75 deg C |
| Overall Length | 3.22 in |
| Housing Material | Nylon |
| For Location | Indoor |
| Contact Material | Bronze |
| Weight (Lbs.) | 0.35 |
| Amperage Rating | 20 A |
| Item Type | Standard |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Cord Mounted |
| Conductor Range | #14 AWG to #12 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Package Quantity | 1 |
