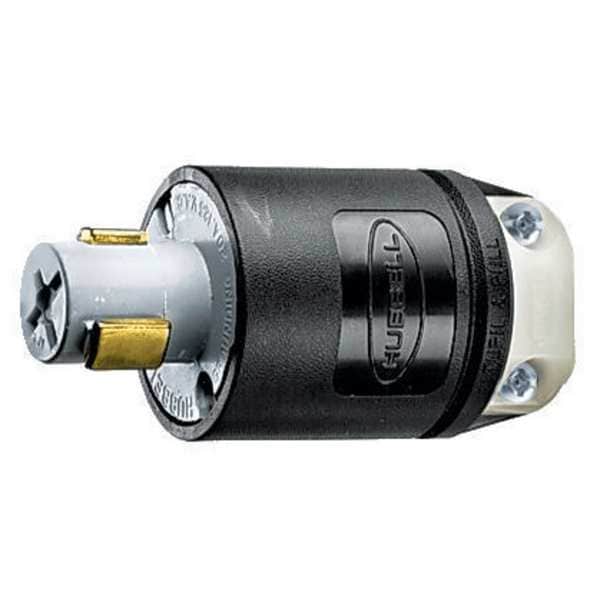

20A Hospital Locking Plug 2P 3W 125VAC GY
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 20A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Color | Gray |
| Cord Size | 0.3 to 0.66 in |
| Color - Plugs and Receptacles | Gray |
| Material | Bakelite |
| Antimicrobial | No |
| Standards | CSA Certified, UL Listed |
| Grade | Hospital Grade |
| NEMA Configuration | Non-NEMA, 3 Blade |
| IP Rating | IP20 |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Amps | 20 |
| Carton Quantity | 30 |
| Current Rating | 20 A |
| Wire Connection Type | Screw Terminals |
| Housing Material | Metallic |
| Body Length | 2.31 in |
| Grounding | Grounded |
| Polarized | Yes |
| Voltage Rating | 125V AC |
| Housing Material Finish | Epoxy Coated |
| For Minimum Cable Diameter | 0.3 in |
| Housing Color | Gray |
| Shrouded | No |
| Number of Blades | 3 |
| Outside Diameter | 1.72 in |
| For Maximum Cable Diameter | 0.66 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Connection Orientation | Straight |
| NEMA Plug Configuration | Non-NEMA |
| Package Quantity | 1 |
