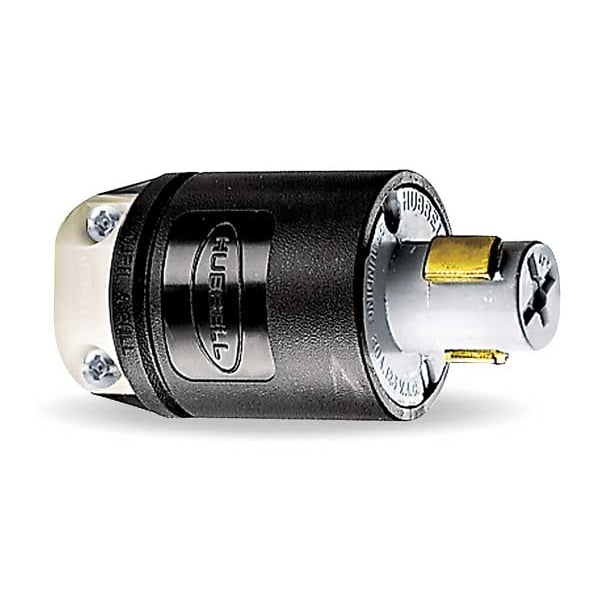

20A Hospital Locking Plug 2P 3W 125VAC GY
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 20A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Amps | 20 |
| Item | Locking Plug |
| Material | Nylon |
| NEMA Configuration | Non-NEMA, 3 Blade |
| Voltage | 125VAC |
| Standards | UL Listed |
| Corrosion Resistant | No |
| Grade | Hospital Grade |
| Antimicrobial | No |
| Cord Size | 0.3 to 0.65 in |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Gray |
| Color | Gray |
| Carton Quantity | 20 |
| Connection Orientation | Straight |
| Body Length | 2.31 in |
| Current Rating | 20 A |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| For Minimum Cable Diameter | 0.3 in |
| NEMA Plug Configuration | Non-NEMA |
| Wire Connection Type | Screw Terminals |
| Polarized | Yes |
| Number of Blades | 3 |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 0.65 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Housing Material | Nylon |
| Shrouded | No |
| Outside Diameter | 1.72 in |
| Weight (Lbs.) | 0.25 |
| Package Quantity | 1 |
