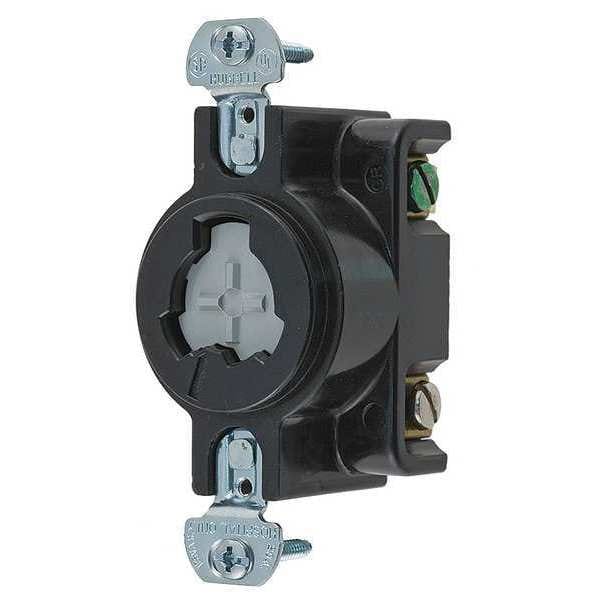

20A Hospital Locking Receptacle 2P 3W 125VAC se traduce como Receptáculo de bloqueo de hospital de 20A, 2 polos, 3 cables y 125VAC.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Locking Receptacle |
| NEMA Configuration | Non-NEMA |
| Voltage | 125V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 12, 4, 4X |
| Mounting Type | Flush Mount |
| Standards | CSA Certified, UL Listed |
| Special Features | With Locking Cover |
| Grade | Hospital Grade |
| Material | Nylon/Thermoplastic Polyester |
| IP Rating | IP30 |
| Flange Width | Not Applicable |
| Connection Orientation | Straight |
| Housing Material | Thermoplastic |
| Resistance Properties | Impact Resistant |
| Flange Type | Non-Flanged |
| Polarized | Yes |
| Number of Gangs | 1 |
| Contact Material | Bronze |
| AFCI | No |
| Shrouded | No |
| Maximum Wire Size | 12 AWG |
| Flange Height | Not Applicable |
| Mount Type | Flush |
| For Environment | Dry |
| NEMA Enclosure Rating | 1 |
| Grounding | Grounded |
| Minimum Wire Size | 14 AWG |
| Current Rating | 20 A |
| For Location | Indoor |
| Flange Diameter | Not Applicable |
| Cover Type | No Cover |
| NEMA Receptacle Configuration | Non-NEMA |
| Housing Color | Black |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | #14 AWG to #12 AWG |
| Lock Type | hospital-hubbellock |
| Weight (Lbs.) | 0.25 |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Wattage | 2500 |
| Item Type | Single |
| Voltage Rating Description | 125 VAC |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
