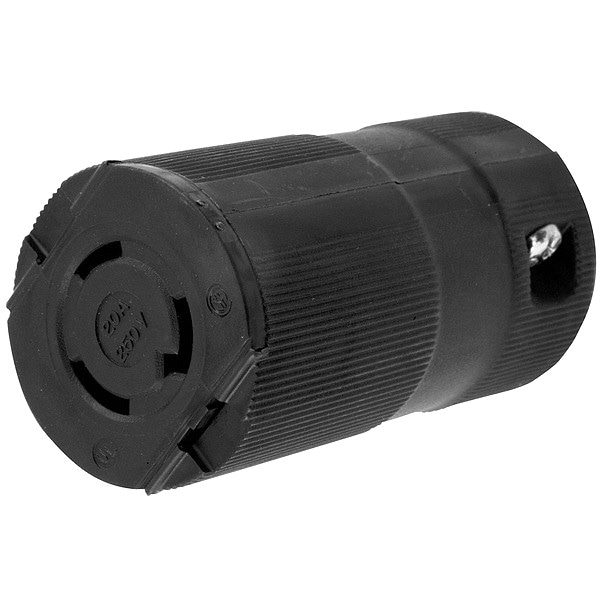

20A Midget Locking Connector 2P 3W 240VAC L6-20R BK
| Item | Midget Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Connector Body |
| Amps | 20 |
| Voltage | 240V AC |
| NEMA Configuration | L6-20 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Hinged |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Cord Size | 0.326 to 0.72 in |
| Body Material | Nylon |
| IP Rating | IP20 |
| Phase | Single |
| Special Features | Terminals identified in accordance with UL 498 |
| Material | Brass |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Housing Material | Nylon |
| Current Rating | 20 A |
| Outside Diameter | 1.812 in |
| Voltage Rating | 250V AC |
| For Location | Indoor |
| Grounding | Grounded |
| For Minimum Cable Diameter | 0.325 in |
| Shrouded | No |
| Insulation Material | Thermoplastic |
| Cap Type | No Cap or Cover |
| For Environment | Dry |
| Horsepower Rating | 2 HP |
| NEMA Receptacle Configuration | L6-20R |
| Overall Length | 1.81 in |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Impact Resistant |
| Minimum Wire Size | 14 AWG |
| Housing Color | Black |
| Connection Orientation | Straight |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Contact Material | Brass |
| Minimum Operating Temperature | -40 deg C |
| Wire Connection Type | Screw Terminals |
| For Maximum Cable Diameter | 0.72 in |
| Market | Industrial |
| UL 94 Flammability Rating | HB |
| Type | Connector Body |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.2 |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Cord Dia. Range | .325"- .720" |
| Dimensions | 1.81 in x 1.81 in x 3.5 in |
| Width | 1.81 in |
| Nema Rating | L6-20R |
| Item Type | 20A Valise® Connector |
| Wire Size | #14 AWG to #8 AWG |
| Material - Mounting Hardware | Cord Mounted |
| Amperage Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Application | Heavy Duty Industrial |
| Voltage Rating Description | 250 VAC |
| Connectivity | Pressure Terminal Screws |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Insulation | Insulated Body |
| Cable Range | 0.325 to 0.72 in |
| Height | 3-1/2 in |
| Cord Range | 0.325"-0.720" |
| Performance | Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG- #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Length | 1.81 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Display Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Package Quantity | 1 |
