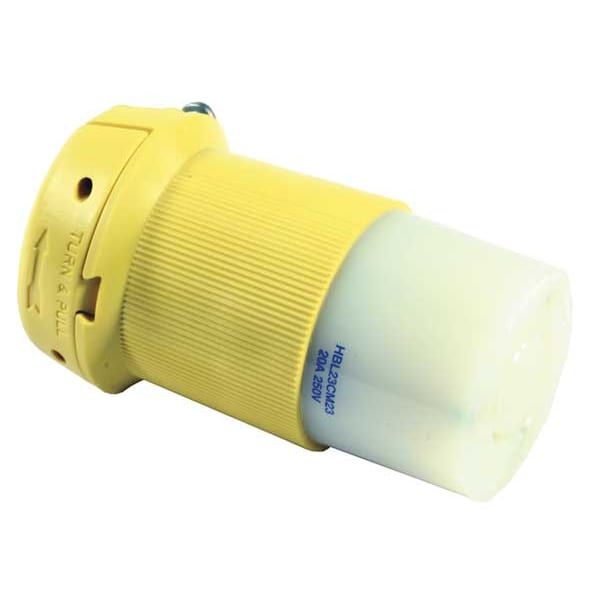

20A Midget Locking Connector 2P 3W 240VAC L6-20R YL
| Item | Midget Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Connector Body |
| Amps | 20 |
| Voltage | 240V AC |
| NEMA Configuration | L6-20 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Body Material | Nylon |
| Cord Size | 0.36 to 0.93 in |
| IP Rating | IP20 |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Material | .031" (.8) Brass |
| Phase | Single |
| Connection Orientation | Straight |
| Midget Locking | No |
| Grounding | Grounded |
| Market | Industrial |
| For Environment | Dry |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| UL 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Contact Material | Nickel-Plated Brass |
| Minimum Wire Size | 16 AWG |
| NEMA Receptacle Configuration | L6-20R |
| Maximum Wire Size | 8 AWG |
| For Maximum Cable Diameter | 0.93 in |
| Outside Diameter | 2.26 in |
| For Minimum Cable Diameter | 0.36 in |
| For Location | Indoor |
| Wire Connection Type | Screw Terminals |
| Housing Color | Yellow |
| Shrouded | No |
| Cap Type | No Cap or Cover |
| Overall Length | 3.86 in |
| Maximum Operating Temperature | 75 deg C |
| Current Rating | 20 A |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.3 |
| Dielectric Strength | 2,000V minimum |
| Amperage Rating | 20 A |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Corrosion Resistant Insulgrip® Connector |
| Height | 2.26 in |
| Wire Size | #16 AWG to #8 AWG |
| Insulation | Insulated Body |
| Length | 3.86 in |
| Voltage Rating Description | 250 VAC |
| Material - Mounting Hardware | Cord Mounted |
| Nema Rating | L6-20R |
| Dimensions | 3.86 in x 2.26 in x 2.26 in |
| Width | 2.26 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Cord Range | 0.360"-0.930" |
| Application | Heavy Duty Industrial |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
