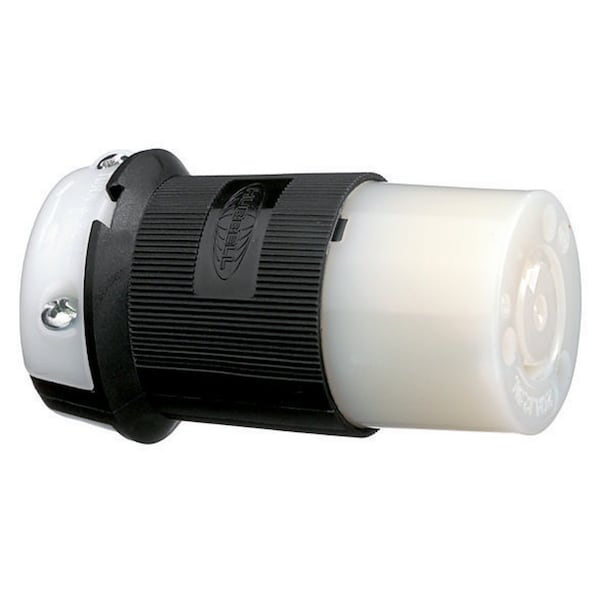

Conector Twist-Lock de 20 amperios, 2 polos, 3 cables, 125VAC L5-20R negro/blanco.
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 20 |
| Amps | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20R |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage | 125VAC |
| NEMA Configuration | L5-20 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | No |
| HP | 1.0 |
| Power Indicator | No |
| Antimicrobial | No |
| Cord Size | 0.36 to 0.93 in |
| Phase | Single |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Material | Nylon |
| Boot Code | B |
| Grade | Industrial/Commercial |
| Special Features | Terminals identified in accordance with UL 498 |
| Body Material | Natural White Nylon |
| For Minimum Cable Diameter | 0.36 in |
| Contact Material | Brass |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg C |
| Outside Diameter | 2.26 in |
| Housing Color | Black, White |
| For Environment | Dry |
| Grounding | Grounded |
| Shrouded | No |
| Minimum Wire Size | 16 AWG |
| Midget Locking | No |
| For Location | Indoor |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| UL 94 Flammability Rating | HB |
| For Maximum Cable Diameter | 0.93 in |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Cap Type | No Cap or Cover |
| Horsepower Rating | 1 HP |
| Housing Material | Nylon |
| Overall Length | 2.26 in |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Maximum Wire Size | 8 AWG |
| NEMA Receptacle Configuration | L5-20R |
| Power Indicating Light | No |
| Cord Dia. Range | .360"-.930" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight | 0.3 |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
