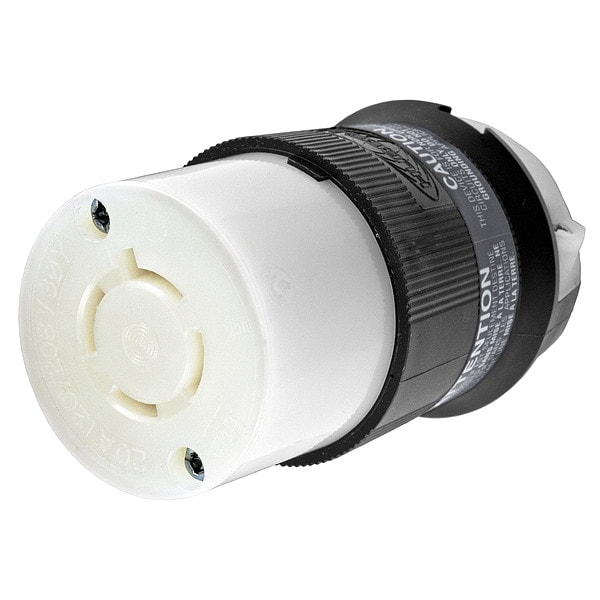

20A Twist-Lock Connector 4P 4W 120/208VAC L18-20R BK/WT
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L18-20R |
| Amps | 20 |
| Voltage - Plugs and Receptacles | 120/208V AC |
| Voltage | 120/208VAC |
| NEMA Configuration | L18-20 |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Black, White |
| Grade - Plugs and Receptacles | Industrial |
| Power Indicator | No |
| Material | Nylon |
| HP | 2.0 |
| IP Rating | IP20 |
| Phase | Three |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | Industrial/Commercial |
| Corrosion Resistant | No |
| Cord Size | 0.35 to 1.15 in |
| Boot Code | C |
| Antimicrobial | No |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Body Material | Natural White Nylon |
| For Location | Indoor |
| Maximum Operating Temperature | 75 deg C |
| Maximum Wire Size | 8 AWG |
| Horsepower Rating | 2 HP |
| For Minimum Cable Diameter | 0.35 in |
| Current Rating | 20 A |
| For Environment | Dry |
| Housing Color | Black, White |
| Power Indicating Light | No |
| Midget Locking | No |
| Outside Diameter | 2.33 in |
| Minimum Wire Size | 16 AWG |
| Market | Industrial |
| Connection Orientation | Straight |
| Grounding | Non-Grounded |
| Resistance Properties | Impact Resistant |
| Contact Material | Brass |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 deg C |
| For Maximum Cable Diameter | 1.15 in |
| Voltage Rating | 120/208V AC |
| UL 94 Flammability Rating | HB |
| NEMA Receptacle Configuration | L18-20R |
| Overall Length | 2.33 in |
| Cap Type | No Cap or Cover |
| Cord Dia. Range | .350"-1.150" |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.4 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #16 AWG to #8 AWG |
| Width | 2.33 in |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | L18-20R |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Length | 2.33 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Height | 3.86 in |
| Cord Range | 0.350"-1.150" |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Item Type | Connector, 20A Insulgrip |
| Application | Heavy Duty Industrial |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Cable Range | 0.35 to 1.15 in |
| Insulation | Insulated Body |
| Display Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
