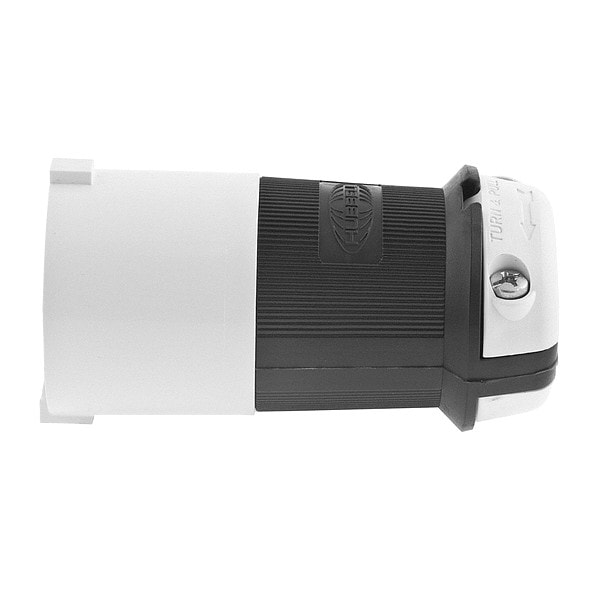

20A Twist-Lock Plug 2P 3W 125VAC L5-20P BK/WT
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20P |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Antimicrobial | No |
| Grade | Industrial |
| IP Rating | IP20 |
| Amps | 20 |
| Voltage | 125VAC |
| Color | Black, White |
| Corrosion Resistant | No |
| Color - Plugs and Receptacles | Black, White |
| HP | 1 |
| Cord Size | 0.325 to 0.93 in |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Material | Nylon |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| For Environment | Dry |
| Overall Length | 2.26 in |
| Minimum Operating Temperature | -40 deg C |
| UL 94 Flammability Rating | HB |
| Blade Material | Brass |
| Housing Material | Nylon |
| Shrouded | Yes |
| Number of Blades | 3 |
| For Maximum Cable Diameter | 0.93 in |
| Body Length | 2.26 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Current Rating | 20 A |
| Face Diameter | 2.04 in |
| Polarized | Yes |
| Housing Color | Black, White |
| For Minimum Cable Diameter | 0.36 in |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 16 AWG |
| NEMA Plug Configuration | L5-20P |
| Connection Orientation | Straight |
| Outside Diameter | 2.26 in |
| Horsepower Rating | 1 HP |
| For Location | Indoor |
| Maximum Wire Size | 8 AWG |
| Market | Industrial |
| Weight (Lbs.) | 0.35 |
| Operating Temp. | Maximum Continuous 75A deg C Minimum -40A deg C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Package Quantity | 1 |
