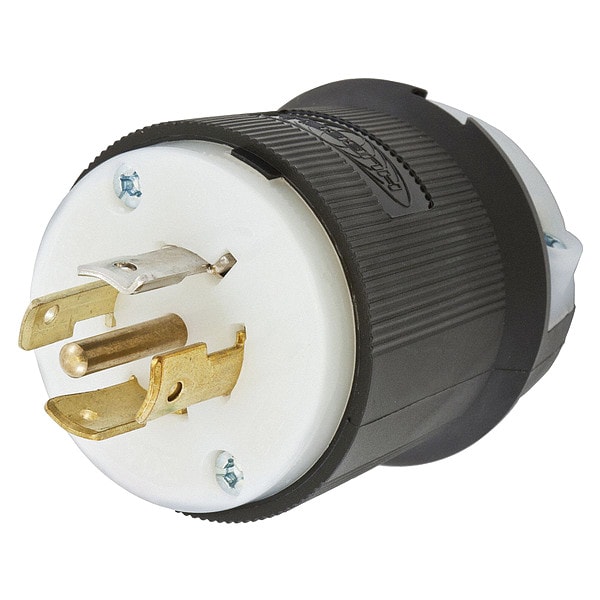

20A Twist-Lock Plug 4P 5W 277/480VAC L22-20P BK/WT
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Item | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 2.33 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L22-20P |
| Voltage - Plugs and Receptacles | 277/480V AC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Corrosion Resistant | No |
| Material | Nylon |
| Voltage | 277/480VAC |
| Boot Code | C |
| Antimicrobial | No |
| Amps | 20 |
| Grade | Industrial |
| Color | Black, White |
| HP | 10 |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Color - Plugs and Receptacles | Black, White |
| Cord Size | 0.35 to 1.15 in |
| Application | Extra Heavy Duty Industrial |
| Maximum Wire Size | 8 AWG |
| Voltage Rating | 277/480V AC |
| Outside Diameter | 2.33 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| For Environment | Dry |
| For Minimum Cable Diameter | 0.35 in |
| Overall Length | 2.33 in |
| Number of Blades | 5 |
| Minimum Operating Temperature | -40 deg C |
| Grounding | Grounded |
| Face Diameter | 2.21 in |
| NEMA Plug Configuration | L22-20P |
| For Location | Indoor |
| Maximum Operating Temperature | 75 deg C |
| Housing Color | Black, White |
| Polarized | Yes |
| Current Rating | 20 A |
| Body Length | 2.33 in |
| Shrouded | No |
| Connection Orientation | Straight |
| Blade Material | Brass |
| Horsepower Rating | 5 HP |
| Market | Industrial |
| For Maximum Cable Diameter | 1.15 in |
| Minimum Wire Size | 16 AWG |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| Housing Material | Nylon |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Wire Size | #16 AWG to #8 AWG |
| Weight (Lbs.) | 0.35 |
| Display Size | Standard Sized |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Width | 2.33 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Voltage Rating Description | 3 Phase WYE 277/480 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | 20A Male Insulgrip® Plug |
| Cable Range | 0.35 to 1.15 in |
| Cord Type | All Listed Portables |
| Nema Rating | L22-20P |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Pressure Terminal Screws |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Type | Plugs |
| Height | 2-3/4 in |
| Cord Range | 0.350"-1.150" |
| Horsepower - Maximum | 5 |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Cord Mounted |
| Package Quantity | 1 |
