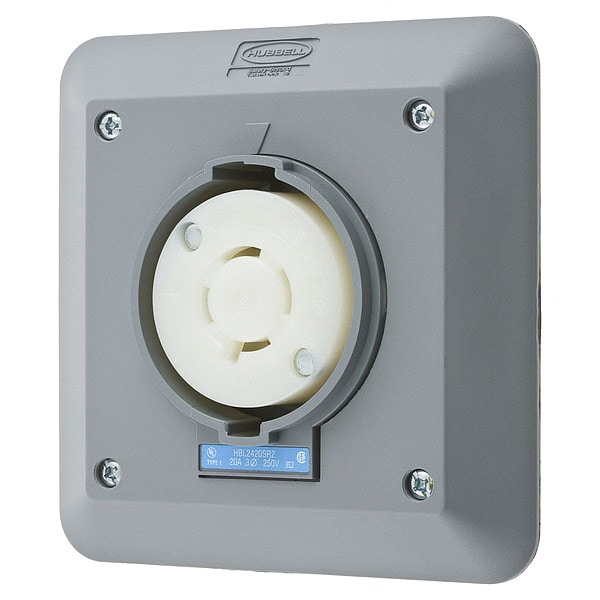

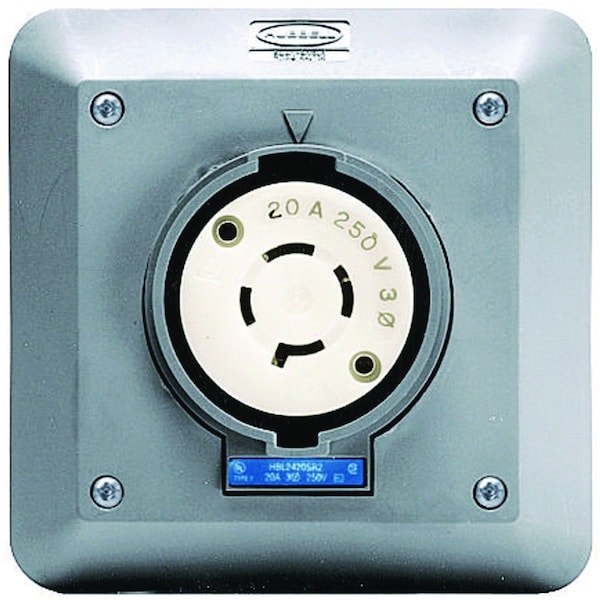

20A Twist-Lock Receptacle 3P 4W 250VAC L15-20R GY
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L15-20 |
| Voltage | 250V AC |
| Amps | 20 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| Special Features | Corrosion resistant |
| IP Rating | IP20 |
| NEMA Rating | 12, 4, 4X |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Mounting Type | Semi Flush Mount |
| Material | Thermoplastic |
| Grade | Industrial |
| HP | 3.0 |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| UL 94 Flammability Rating | V-2 |
| For Location | Indoor |
| Polarized | Yes |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 16 AWG |
| Wire Connection Type | Screw Terminals |
| Flange Type | Non-Flanged |
| NEMA Receptacle Configuration | L15-20R |
| Connection Orientation | Straight |
| Market | Industrial |
| Cover Type | No Cover |
| For Environment | Dry |
| Minimum Operating Temperature | -40 Degrees C |
| Flange Height | Not Applicable |
| NEMA Enclosure Rating | 1 |
| AFCI | No |
| Grounding | Grounded |
| Contact Material | Brass |
| Current Rating | 20 A |
| Housing Material | Valox |
| Shrouded | Yes |
| Maximum Wire Size | 8 AWG |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| Housing Color | Gray |
| Number of Gangs | 2 |
| Horsepower Rating | 3 HP |
| Voltage Rating | 250V AC |
| Flammability | HB or better per UL94 or CSA 22.2 No. 0.6 |
| Spring Material | .031" Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 0.75 |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Flange Material | Gray Valox 357U |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Mount Type | Flush |
| Package Quantity | 1 |
