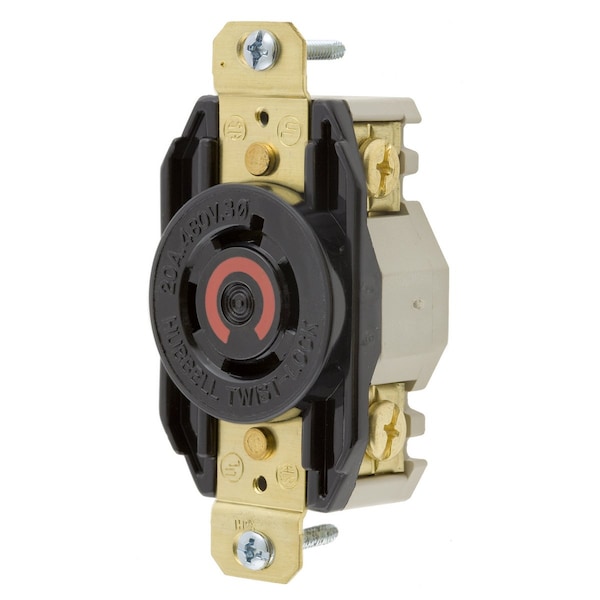

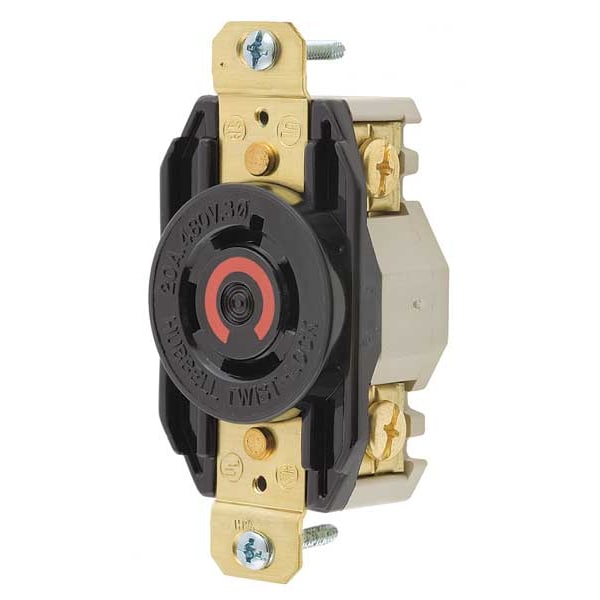

Tomacorriente de bloqueo de 20 A, 3 polos, 4 cables, 480 VAC, L16-20R BK.
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L16-20 |
| Voltage | 480V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Mounting Type | Flush Mount |
| HP | 5.0 |
| IP Rating | IP20 |
| Material | Thermoplastic Elastomer |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | Industrial |
| NEMA Rating | 1 |
| Special Features | Corrosion resistant |
| AFCI | No |
| Minimum Operating Temperature | -40 Degrees C |
| For Environment | Dry |
| Current Rating | 20 A |
| Contact Material | Brass |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| Includes | Mounting Hardware |
| Grounding | Grounded |
| Voltage Rating | 480V AC |
| Resistance Properties | Impact Resistant |
| Includes Mounting Hardware | Yes |
| For Location | Indoor |
| Polarized | Yes |
| Maximum Operating Temperature | 75 deg C |
| Cover Type | No Cover |
| NEMA Enclosure Rating | 1 |
| Housing Color | Black |
| Mount Type | Flush |
| UL 94 Flammability Rating | V-2 |
| Housing Material | Nylon |
| Shrouded | No |
| NEMA Receptacle Configuration | L16-20R |
| Flange Type | Non-Flanged |
| Maximum Wire Size | 8 AWG |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 16 AWG |
| Market | Industrial |
| Number of Gangs | 1 |
| Flange Height | Not Applicable |
| Connection Orientation | Straight |
| Horsepower Rating | 5 HP |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Base Material | Nylon Polyester |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Weight (Lbs.) | 0.3 |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Spring Material | .040" Brass |
| Package Quantity | 1 |
