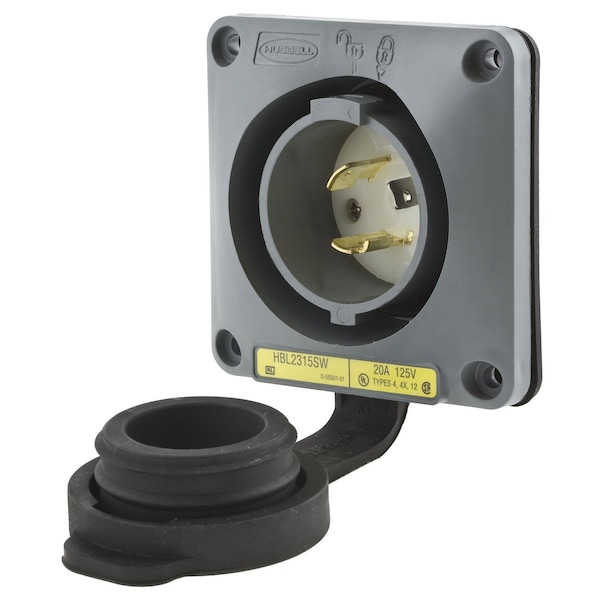

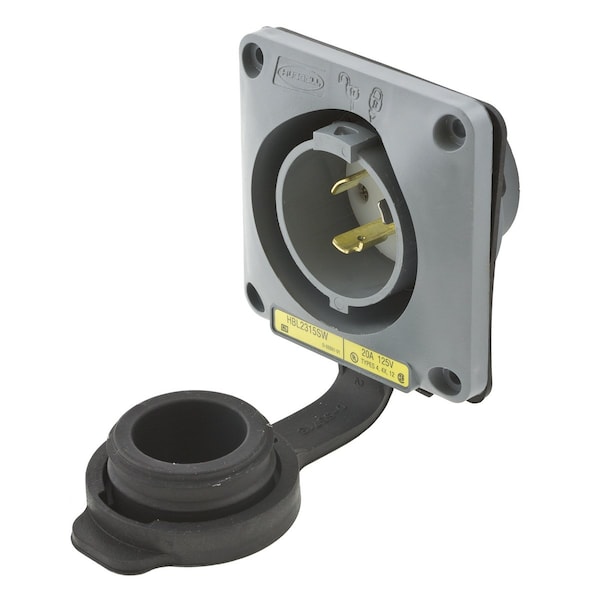

20A Watertight Flanged Twist-Lock Inlet 2P 3W 125VAC
| Item | Watertight Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L5-20 |
| Voltage | 125V AC |
| Amps | 20 |
| Color | Gray |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| IP Rating | IP66 |
| Mounting Type | Flush Mount |
| NEMA Rating | 12, 4, 4X |
| Special Features | With Locking Cover |
| Grade | General Use |
| Standards | CSA Type 4, 4X and Type 12, UL Listed |
| HP | 1.0 |
| Material | Nylon |
| Minimum Operating Temperature | -40 deg C |
| Number of Blades | 3 |
| Overall Depth | 2.267 in |
| UL 94 Flammability Rating | V-0 |
| Maximum Wire Size | 8 AWG |
| Mount Type | Flush |
| Blade Material | Brass |
| Current Rating | 20 A |
| Face Plate Height | 3-3/4 in |
| Voltage Rating | 125V AC |
| Flange Height | 3-3/4 in |
| Housing Color | Gray |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Valox |
| Market | Industrial |
| Grounding | Grounded |
| Flange Type | Flanged |
| Horsepower Rating | 1 HP |
| Shrouded | Yes |
| Includes | Closure Cap |
| Wire Connection Type | Screw Terminals |
| Flange Material | PBT |
| NEMA Enclosure Rating | 4X, 4, 12 |
| Minimum Wire Size | 16 AWG |
| NEMA Plug Configuration | L5-20P |
| Resistance Properties | Impact Resistant, Watertight |
| Cord Size | 16 to 8 AWG |
| Screw Material | Stainless Steel |
| Weight | 0.6 lb |
| Flammability | UL 94 V0 |
| Contact Material | Brass |
| Temp. Rise | 30°C |
| Dielectric Strength | 2,000 V |
| Retainer Material | Clear Polycarbonate |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
