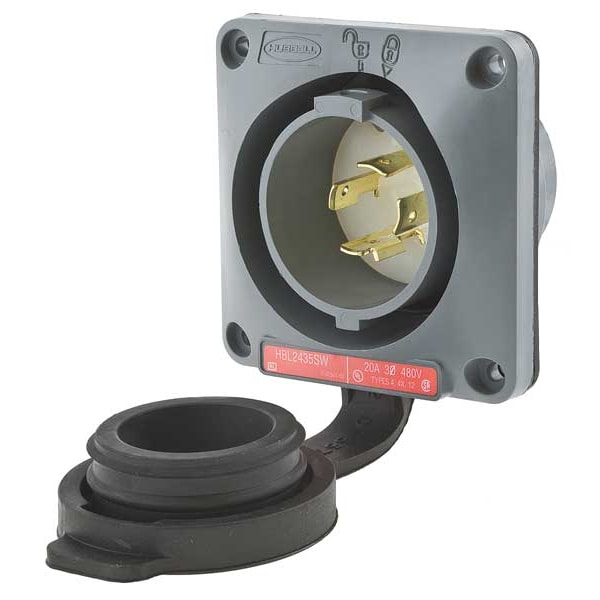

Enchufe de bloqueo giratorio de brida a prueba de agua de 20A, 3 polos, 4 cables, 480VCA.
| Item | Watertight Flanged Locking Inlet |
|---|---|
| NEMA Configuration | L16-20 |
| Voltage | 480V AC |
| Amps | 20 |
| Color | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Shrouded |
| Wiring Style | Standard |
| HP | 5.0 |
| Special Features | With Locking Cover |
| Material | Nylon |
| IP Rating | IP66 |
| Grade | General Use |
| NEMA Rating | 12, 4, 4X |
| Standards | CSA Type 4, 4X and Type 12, UL Listed |
| Mounting Type | Flush Mount |
| Blade Material | Brass |
| Includes | Closure Cap |
| Flange Height | 3-3/4 in |
| Market | Industrial |
| Flange Material | PBT |
| Overall Depth | 2.267 in |
| Maximum Operating Temperature | 75 deg C |
| Flange Type | Flanged |
| Number of Blades | 4 |
| Minimum Wire Size | 16 AWG |
| UL 94 Flammability Rating | V-0 |
| NEMA Plug Configuration | L16-20P |
| Grounding | Grounded |
| NEMA Enclosure Rating | 4X, 4, 12 |
| Housing Color | White, Gray |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Horsepower Rating | 5 HP |
| Shrouded | Yes |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 8 AWG |
| Voltage Rating | 480V AC |
| Housing Material | Thermoplastic |
| Face Plate Height | 3-3/4 in |
| Mount Type | Flush |
| Resistance Properties | Impact Resistant, Watertight |
| Weight | 0.65 lb |
| Cord Size | 16 to 8 AWG |
| Contact Material | Brass |
| Retainer Material | Clear Polycarbonate |
| Flammability | UL 94 V0 |
| Screw Material | Stainless Steel |
| Dielectric Strength | 2,000 V |
| Temp. Rise | 30°C |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
