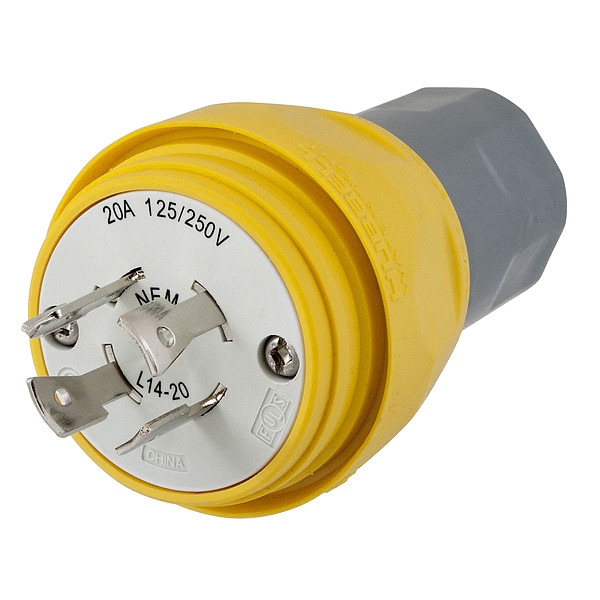

20A Watertight Locking Plug 3P 4W 125/250VAC
| Number of Poles | 3 |
|---|---|
| Number of Wires | 4 |
| Color - Plugs and Receptacles | Yellow |
| HP | 2.0 |
| Standards | ANSI, NEMA WD-1 and WD-6 |
| Amps - Plugs and Receptacles | 20 |
| Grade | Industrial |
| Material | Thermoplastic Elastomer, Valox |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Corrosion Resistant | No |
| Antimicrobial | No |
| Voltage | 125/250VAC |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Special Features | Moisture, Dust and Weather Resistant |
| Amps | 20 |
| NEMA Rating | 4, 4X, 6, 6P |
| Phase | Single |
| Cord Size | 0.325 to 7/8 in |
| Item | Watertight Locking Plug |
| IP Rating | IP69K |
| NEMA Configuration | L14-20 |
| NEMA Plug Configuration - Plugs and Receptacles | L14-20P |
| Item - Plugs and Receptacles | Watertight Locking Plug |
| Color | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| Connection Orientation | Straight |
| Blade Material | Nickel-Plated Brass |
| Outside Diameter | 2.51 in |
| Housing Color | Yellow |
| For Minimum Cable Diameter | 3/8 in |
| NEMA Plug Configuration | L14-20P |
| Horsepower Rating | 2 HP |
| Maximum Operating Temperature | 60 deg C |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Polarized | Yes |
| Number of Blades | 4 |
| Minimum Operating Temperature | -40 deg C |
| Body Length | 2.51 in |
| Overall Length | 2.51 in |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| Housing Material | Thermoplastic Elastomer |
| Shrouded | No |
| For Maximum Cable Diameter | 7/8 in |
| Current Rating | 20 A |
| Body Material | Thermoplastic Elastomer |
| Temp. Rise | 30°C |
| Contact Material | Nickel Plated Brass |
| Retainer Material | Clear Polycarbonate |
| Dielectric Strength | 2,500 V AC |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Bushing Material | Black Elastomer |
| Operating Temp. | -40 to 60°C |
| Length | 2.51 in |
| Wire Size | Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Type | Plugs |
| Voltage Rating Description | 125/250 VAC |
| Amperage Rating | 20 A |
| Width | 2.51 in |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2) |
| Item Type | Plug |
| Height | 3.96 in |
| Current / Amperage Rating | 20 A |
| Dimensions | 2.51 in x 2.51 in x 3.96 in |
| Package Quantity | 1 |
