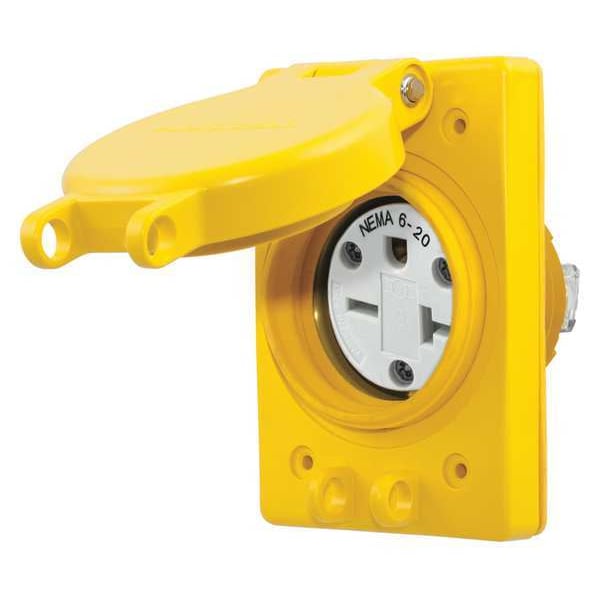

20A Watertight Receptacle, 6-20R, 250VAC
| Item | Watertight Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6 to 20 R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | Yes |
| Color - Plugs and Receptacles | Yellow |
| Wiring Method - Plugs and Receptacles | Back, Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| IP Rating | IP69K |
| Amps | 20 |
| Material | Thermoplastic Elastomer, Stainless Steel |
| NEMA Rating | 3R, 3RX, 4, 4X |
| Mounting Type | Flush Mount |
| Number of Gangs | 1 |
| Description | With Lift Cover |
| Phase | Single |
| Outlet Type | Single |
| Wiring Method | Back, Side |
| NEMA Configuration | 6-20 |
| Weather Resistant | Yes |
| Color | Yellow |
| Corrosion Resistant | No |
| Standards | CSA Certified, NSF, UL Listed |
| Voltage | 250VAC |
| Sub-Category | Single Receptacles |
| Amps - Plugs and Receptacles | 20 |
| Receptacle Type | Single |
| Market | Industrial |
| AFCI | No |
| Connection Orientation | Straight |
| Resistance Properties | Moisture Resistant, UV/Sunlight Resistant |
| Housing Material | PBT |
| Cover Type | Flip-Up Cover |
| Current Rating | 20 A |
| GFCI | No |
| Contact Material | Nickel Plated Brass |
| Shrouded | No |
| Housing Color | Yellow |
| Grade | Marine |
| NEMA Receptacle Configuration | 6-20R |
| Mount Hole Center-to-Center Height | 3.3 in |
| Includes | Mounting Hardware |
| Flange Type | Non-Flanged |
| Minimum Operating Temperature | -40 deg F |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-Center Width | 1.9 in |
| Grounding | Grounded |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 250V AC |
| Maximum Operating Temperature | 140 deg F |
| Mount Type | Flush |
| Surge Protection | No |
| NEMA Enclosure Rating | 1 |
| Retainer Material | Clear Polycarbonate |
| Temp. Rise | 30°C |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Body Material | PBT |
| Dielectric Strength | 2,500 V AC |
| Operating Temp. | -40 to 60°C |
| Type | Receptacle |
| Amperage Rating | 20 A |
| Voltage Rating Description | 250 V |
| Current / Amperage Rating | 20 A |
| Series | Watertight Devices |
| Package Quantity | 1 |
