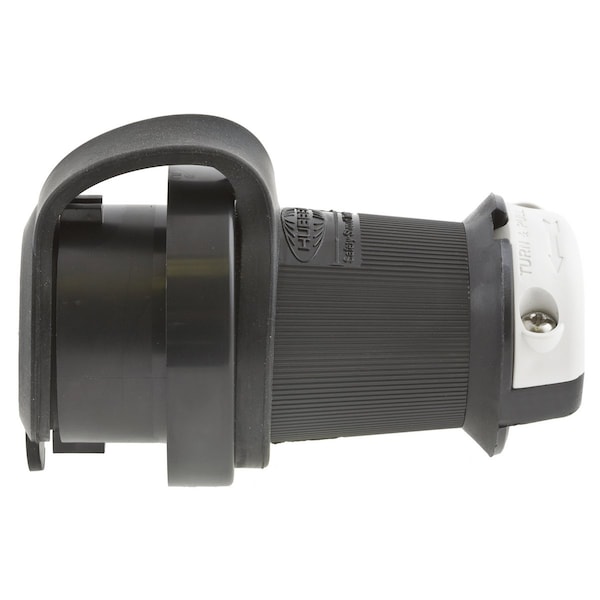

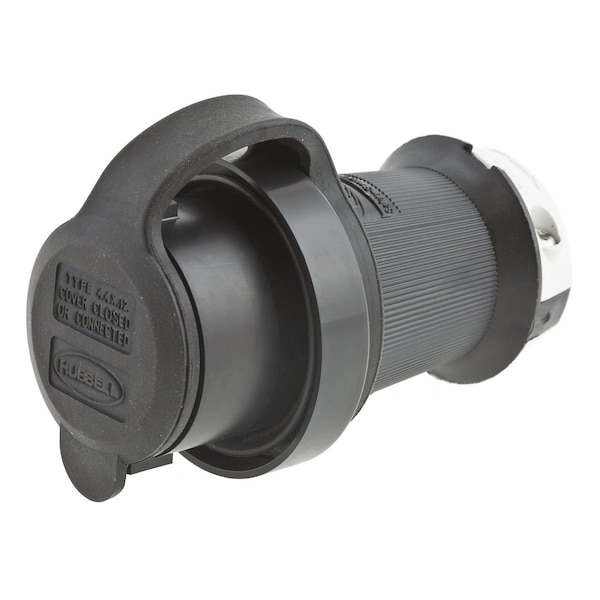

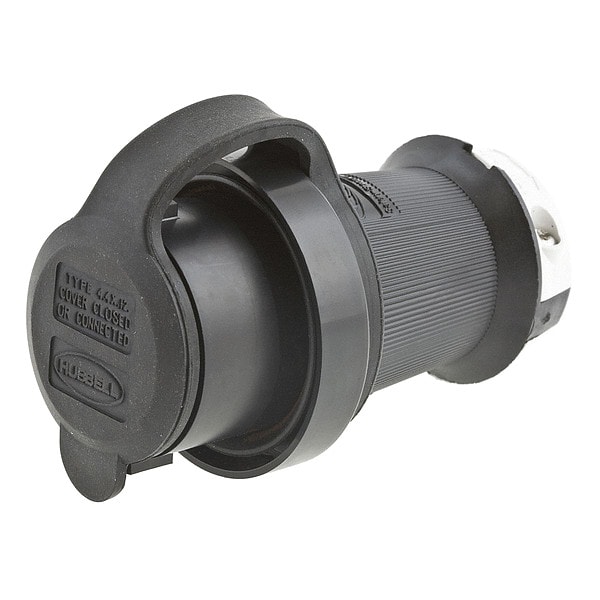

Enchufe hermético de bloqueo giratorio de 20A, 3 polos, 4 cables, 480VCA L16-20P BK/WT.
| Item - Plugs and Receptacles | Watertight Locking Plug |
|---|---|
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L16-20P |
| Voltage - Plugs and Receptacles | 480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Standards | CSA Certified Type 4, UL Listed |
| Special Features | Moisture, Dust and Weather Resistant |
| Item | Watertight Locking Plug |
| NEMA Rating | 4, 4X, 12 |
| Color - Plugs and Receptacles | Black, White |
| Amps | 20 |
| Grade | Industrial |
| Color | Black, White |
| Antimicrobial | No |
| HP | 5.0 |
| IP Rating | IP66 |
| Cord Size | 0.35 to 1.15 in |
| Material | Impact Modified PBT |
| Corrosion Resistant | No |
| Voltage | 480VAC |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| For Maximum Cable Diameter | 1.15 in |
| Body Length | 2.94 in |
| Face Diameter | 2.77 in |
| Market | Industrial |
| Current Rating | 20 A |
| Number of Blades | 4 |
| Overall Length | 2.94 in |
| Blade Material | Brass |
| Housing Color | White |
| Minimum Wire Size | 16 AWG |
| For Minimum Cable Diameter | 0.35 in |
| Housing Material | Polybutylene Terephthalate |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| UL 94 Flammability Rating | V-0 |
| Connection Orientation | Straight |
| Voltage Rating | 480V AC |
| Shrouded | Yes |
| Minimum Operating Temperature | -40 deg C |
| NEMA Plug Configuration | L16-20P |
| Horsepower Rating | 5 HP |
| Maximum Wire Size | 8 AWG |
| Temp. Rise | 30°C |
| Weight | 0.7 lb |
| Flammability | UL 94 V0 |
| Dielectric Strength | 2,000 V |
| Retainer Material | Clear Polycarbonate |
| Contact Material | Brass |
| Screw Material | Stainless Steel |
| Product Type | Shrouded Watertight |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
