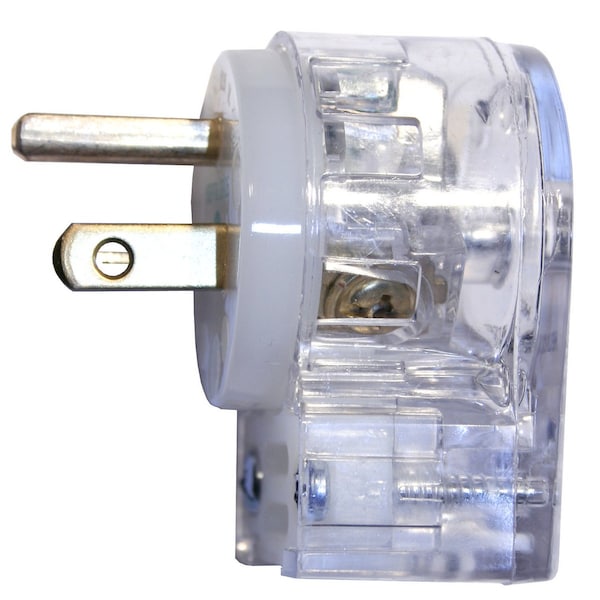

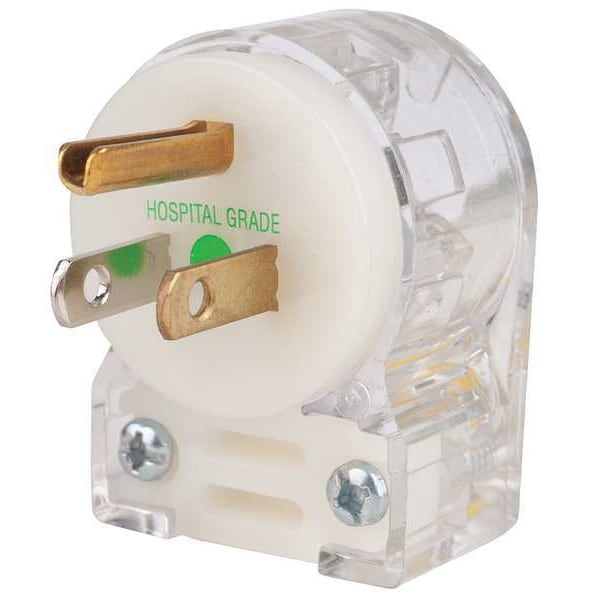

3 Wire Angle Straight Blade Plug Hospital Grade 125VAC 15A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Insulgrip Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3-Wire |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Transparent |
| Number of Poles | 2-Pole |
| Phase | Single |
| IP Rating | IP20 |
| HP | 1/2 |
| Amps | 15 |
| Color - Plugs and Receptacles | White |
| Material | polycarbonate |
| Grade | Hospital Grade |
| Special Features | Corrosion resistant |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, UL 498 File E1706 |
| Corrosion Resistant | Yes |
| Cord Size | 1/4 to 0.66 in |
| Voltage | 125VAC |
| Type | Plug |
| Current Rating | 15 A |
| Amperage | 15 A |
| Wire Size | #18 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5 to 15 P |
| Style | Insulgrip |
| Series | Hospital Grade |
| Voltage Rating | 125 V |
| Carton Quantity | 10 |
| Brand | Hubbell Wiring Device-Kellems |
| Maximum Horsepower | 0.5 |
| Cord Dia. Range | 0.25 to 0.655 |
| Minimum Operating Temperature | -40 deg F |
| Minimum Wire Size | 18 AWG |
| For Maximum Cable Diameter | 0.655 in |
| Housing Material Finish | Nickel Plated |
| NEMA Plug Configuration | 5-15P |
| Insulation Material | Polycarbonate |
| Connection Orientation | Angled |
| Body Length | 1.53 in |
| Maximum Wire Size | 10 AWG |
| Resistance Properties | Corrosion Resistant |
| For Minimum Cable Diameter | 1/4 in |
| Polarized | Yes |
| UL 94 Flammability Rating | HB |
| Grounding | Grounded |
| Maximum Operating Temperature | 167 deg F |
| Horsepower Rating | 0.5 HP |
| Housing Color | Clear |
| Wire Connection Type | Screw Terminals |
| Housing Material | Polycarbonate |
| Number of Blades | 3 |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Weight (Lbs.) | 0.15 |
| Connector Type | Insulgrip |
| Flammability | UL 94 HB or better |
| Body Style | Angle |
| Package Quantity | 1 |
