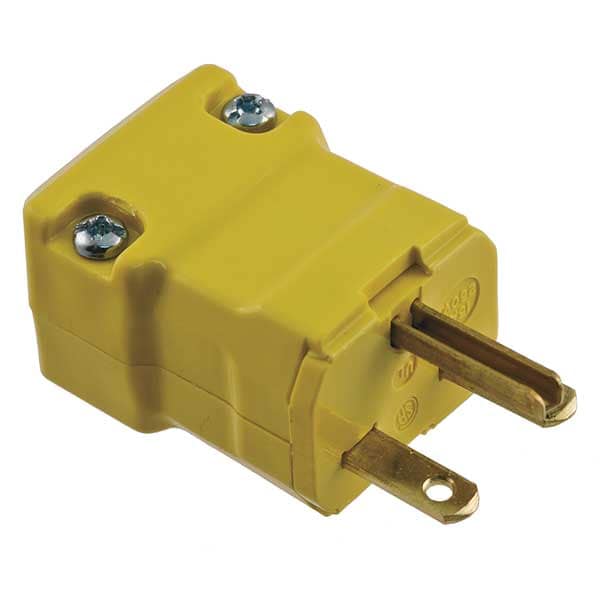

3 Wire Commercial Straight Blade Plug 250VAC 15A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Commercial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Yellow |
| Number of Poles | 2 |
| Voltage | 250VAC |
| Color - Plugs and Receptacles | Yellow |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706 |
| Special Features | Corrosion resistant |
| Corrosion Resistant | Yes |
| HP | 1-1/2 |
| Material | Nylon |
| Phase | Single |
| Cord Size | 0.22 to 0.66 in |
| Amps | 15 |
| Grade | Commercial |
| NEMA Rating | WD-6; 6-15P |
| Maximum Operating Temperature | 167 deg F |
| For Maximum Cable Diameter | 0.66 in |
| Number of Blades | 3 |
| Minimum Wire Size | 18 AWG |
| Housing Material | Nylon |
| Maximum Wire Size | 12 AWG |
| Current Rating | 15 A |
| Market | Industrial, Commercial |
| Connection Orientation | Straight |
| Grounding | Grounded |
| NEMA Plug Configuration | 6-15P |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 250V AC |
| Insulation Material | Nylon |
| Horsepower Rating | 1.5 HP |
| Body Length | 1.88 in |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Yellow |
| UL 94 Flammability Rating | HB |
| For Minimum Cable Diameter | 0.22 in |
| Body Style | Straight |
| Flammability | Rated HB or better UL94 |
| Ground Screw Material | Steel |
| Blade Material | Solid Brass |
| Terminal Screw Material | Steel |
| Dielectric Strength | Withstands 2000V per UL498 |
| Ground Contact Blade Material | Brass |
| Cord Clamp Material | Noryl |
| Body Material | Impact Modified Nylon |
| Contact Blades Material | .060" Brass |
| Weight (Lbs.) | 0.15 |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Environment | Dry |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Package Quantity | 1 |
