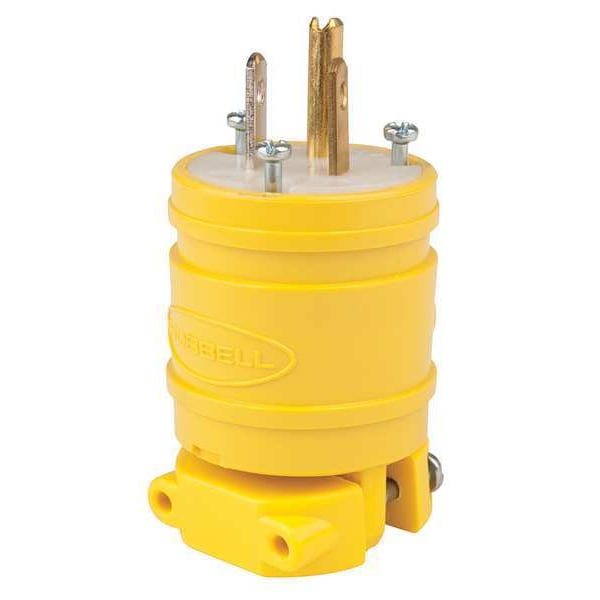

Enchufe de hoja recta con sello de reversa de 3 cables 125VCA 15A.
| Item - Plugs and Receptacles | Dust Tight Straight Blade Plug |
|---|---|
| Item | Dust Tight Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | General |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Yellow |
| Number of Poles | 2 |
| Corrosion Resistant | Yes |
| Cord Size | 0.3 to 0.655 in |
| IP Rating | IP20 |
| Amps | 15 |
| Color - Plugs and Receptacles | Yellow |
| Standards | CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706 |
| Special Features | Corrosion resistant |
| NEMA Configuration | 5-15 |
| Voltage | 125VAC |
| Grade | General |
| HP | 1/2 |
| Phase | Single |
| Material | PVC |
| Type | Plug |
| NEMA Rating | WD-6; 5-15P |
| Minimum Operating Temperature | -40 deg F |
| Current Rating | 15 A |
| Maximum Operating Temperature | 167 deg F |
| Housing Color | Yellow |
| Grounding | Grounded |
| Number of Blades | 3 |
| Horsepower Rating | 2 HP |
| UL 94 Flammability Rating | V-2 |
| Market | Industrial, Commercial |
| Minimum Wire Size | 18 AWG |
| Housing Material | Polycarbonate |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Insulation Material | Elastomer |
| For Minimum Cable Diameter | 0.3 in |
| For Maximum Cable Diameter | 0.655 in |
| Polarized | Yes |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Body Length | 2.19 in |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 12 AWG |
| NEMA Plug Configuration | 5-15P |
| Body Style | Straight |
| Cord Clamp Material | Nylon-Yellow |
| Retainer Material | Polycarbonate-Clear |
| Ground Contact Blade Material | .040" Copper Alloy |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Body Material | Impact Modified Nylon |
| Blade Material | Solid Brass |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Enhancement | Water Tight |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Weight (Lbs.) | 0.2 |
| Environment | Dry |
| Dielectric Strength | Withstands 2000V per UL498 |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Flammability | Rated HB or better UL94 |
| Blade Holder Material | Nylon-Natural |
| Contact Blades Material | .060" Brass |
| Length | 2.19 in |
| Display Size | Standard Sized Product |
| Dimensions | 2.19 in x 1.55 in x 2.19 in |
| Width | 1.55 in |
| Horsepower - Maximum | 2 |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Height | 2.19 in |
| Style | Standard |
| Item Type | Insulgrip Plug |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical:Current Interrupting: Certified for current interrupting at full rated current,Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the deviceTerminal Accommodation #18-#12 AWG. Stranded copper wire only.Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental:Flammability: UL 94 V-2,IP Suitability: IP20 Operating Temperatures Maximum continuous 75°C minimum -40°C (w/o impact) |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Amperage Rating | 15 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #18 AWG to #12 AWG |
| Series | Elastogrip |
| Application | Industrial/Commercial Grade |
| Package Quantity | 1 |
