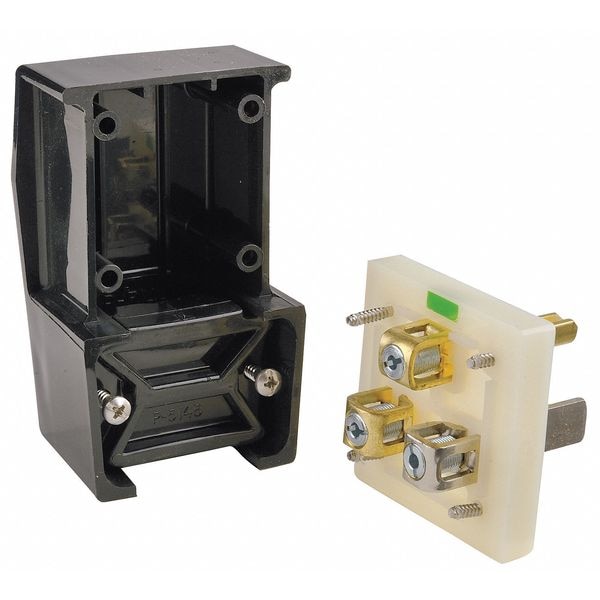

3 Wire Industrial Angle Straight Blade Plug 125VAC 50A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-50P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Amps | 50 |
| Cord Size | 5/8 to 1.187 in |
| Grade | Industrial |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Black, White |
| HP | 2 |
| Corrosion Resistant | Yes |
| Standards | CSA Certified C22.2 No. 42 File 280, UL 498 File E1706 |
| Voltage | 125VAC |
| Material | Nylon |
| Phase | Single |
| Special Features | Corrosion resistant |
| Type | Plug |
| NEMA Rating | 5-50P |
| Horsepower Rating | 2 HP |
| Number of Blades | 3 |
| Minimum Operating Temperature | -40 deg F |
| Insulation Material | Nylon |
| For Maximum Cable Diameter | 1.187 in |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| NEMA Plug Configuration | 5-50P |
| Housing Material | Nylon |
| Resistance Properties | Corrosion Resistant |
| Body Length | 4.34 in |
| Current Rating | 50 A |
| For Minimum Cable Diameter | 5/8 in |
| Connection Orientation | Angled |
| Housing Color | Black |
| Polarized | Yes |
| Maximum Operating Temperature | 167 deg F |
| Grounding | Grounded |
| Market | Industrial, Commercial |
| Flammability | Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer). |
| Body Style | Angle |
| Box Terminals Material | Brass |
| Temp. Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight (Lbs.) | 0.55 |
| Ground Screw Material | Steel |
| Retainer Material | Reinforced Thermoplastic Polyester |
| Contact Blades Material | .060" Brass |
| Ground Contact Blade Material | Brass |
| Cord Clamp Material | Reinforced Thermoplastic Polyester |
| Operating Temp. | Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Blade Holder Material | Reinforced Thermoplastic Polyester |
| Terminal Screw Material | Steel - Zn plated |
| Length | 4.34 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 50 A |
| Industry Standard(s) | UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280 |
| Cord Range | 0.625"-1.187" |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 2-3/4 in |
| Dimensions | 4.34 in x 2-3/4 in x 1.88 in |
| Horsepower - Maximum | 2 |
| Current / Amperage Rating | 50 A |
| Height | 1.88 in |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
