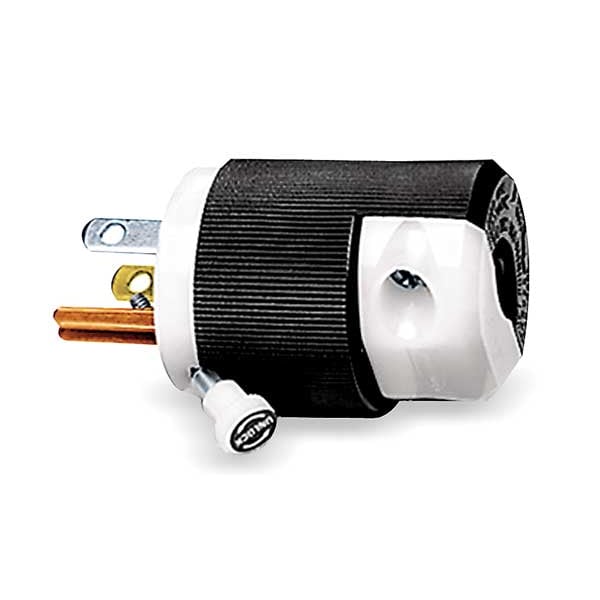

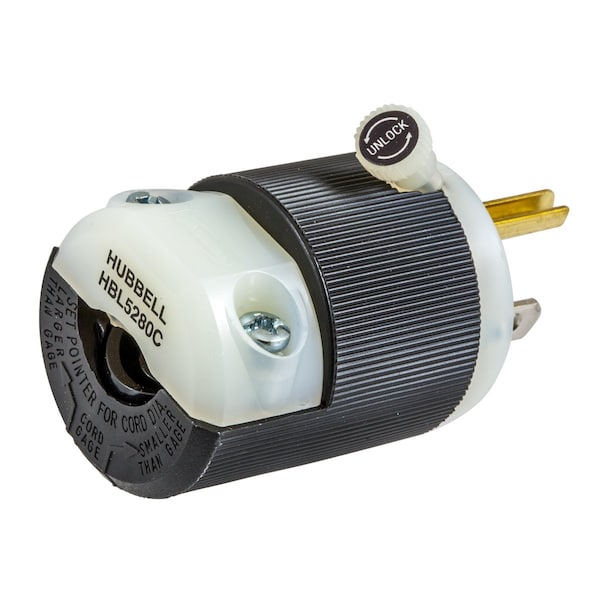

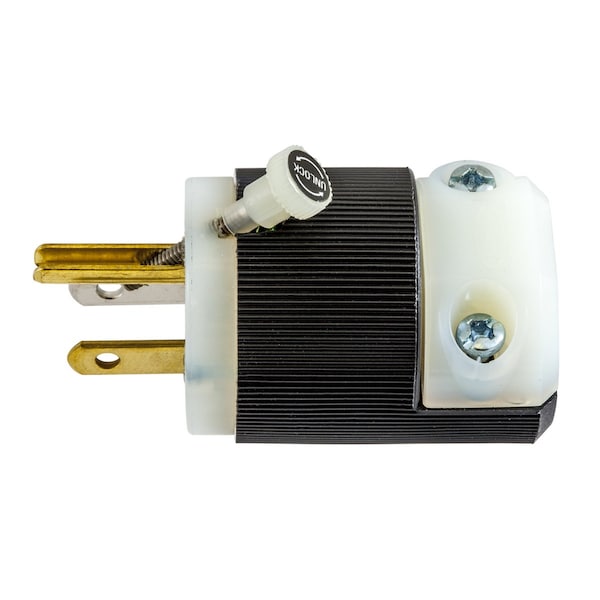

3 Wire Industrial Straight Blade Plug 125VAC 15A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Special Features | Corrosion resistant |
| Color - Plugs and Receptacles | Black, White |
| Corrosion Resistant | Yes |
| Cord Size | 0.23 to 0.72 in |
| HP | 1/2 |
| Phase | Single |
| Voltage | 125VAC |
| Standards | NEMA WD-6, UL 498 File E1706 |
| Material | Nylon |
| Amps | 15 |
| IP Rating | IP20 |
| Grade | Industrial |
| NEMA Rating | WD-6; 5-15P |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 0.72 in |
| For Minimum Cable Diameter | 0.23 in |
| Connection Orientation | Straight |
| Outside Diameter | 1.52 in |
| Maximum Operating Temperature | 167 deg F |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Insulation Material | Nylon |
| Minimum Wire Size | 18 AWG |
| Number of Blades | 3 |
| Maximum Wire Size | 10 AWG |
| Horsepower Rating | 0.5 HP |
| Housing Material | Polycarbonate |
| Current Rating | 15 A |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| NEMA Plug Configuration | 5-15P |
| Body Length | 1.52 in |
| Market | Industrial, Commercial |
| Grounding | Grounded |
| UL 94 Flammability Rating | HB |
| Cord Clamp Material | Nylon-Natural |
| Blade Holder Material | Nylon-Natural |
| Ground Contact Blade Material | .040" Copper Alloy |
| Flammability | Rated HB or better UL94 |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Enhancement | Anchor Lock |
| Contact Blades Material | .060" Brass |
| Retainer Material | Polycarbonate-Clear |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Body Style | Straight |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Blade Material | Solid Brass |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Environment | Dry |
| Dielectric Strength | Withstands 2000V per UL498 |
| Body Material | Impact Modified Nylon |
| Weight (Lbs.) | 0.15 |
| Package Quantity | 1 |
