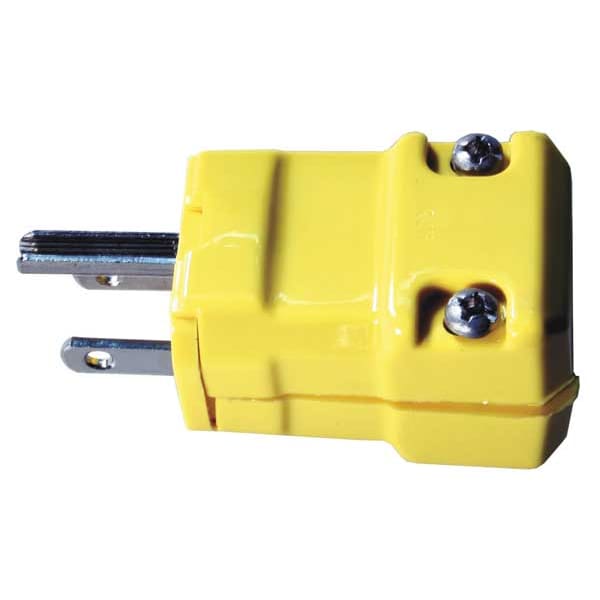

3 Wire Industrial Straight Blade Plug 125VAC 15A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Yellow |
| Number of Poles | 2 |
| Color - Plugs and Receptacles | Yellow |
| Special Features | Corrosion resistant |
| Standards | CSA Certified, UL Listed |
| Material | Nylon |
| Corrosion Resistant | Yes |
| Phase | Single |
| IP Rating | IP20 |
| Grade | Industrial |
| Cord Size | 0.22 to 0.66 in |
| Amps | 15 |
| Voltage | 125VAC |
| Number of Blades | 3 |
| Housing Material | Nylon |
| For Minimum Cable Diameter | 0.22 in |
| Polarized | Yes |
| For Maximum Cable Diameter | 0.66 in |
| Wire Connection Type | Screw Terminals |
| Horsepower Rating | 0.5 HP |
| Voltage Rating | 125V AC |
| NEMA Plug Configuration | 5-15P |
| Market | Industrial |
| Current Rating | 15 A |
| Connection Orientation | Straight |
| Resistance Properties | Corrosion Resistant |
| Housing Color | Yellow |
| Insulation Material | Nylon |
| Housing Type | Valise |
| Blade Type | Straight Blade |
| Weight (Lbs.) | 0.15 |
| Package Quantity | 1 |
