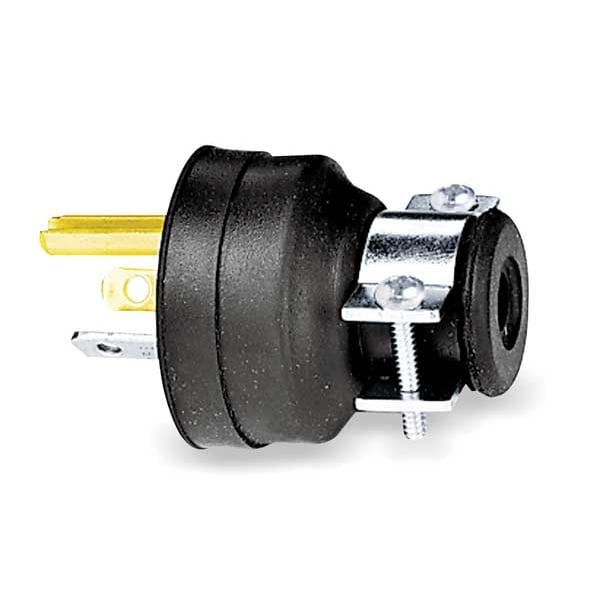

3 Wire Industrial Straight Blade Plug 125VAC 15A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black |
| Number of Poles | 2 |
| IP Rating | IP20 |
| Material | Nylon |
| Phase | Single |
| Standards | CSA Certified C22.2 No. 42 File 280 |
| Grade | Industrial |
| Voltage | 125VAC |
| Corrosion Resistant | Yes |
| Amps | 15 |
| Cord Size | 0.312 to 0.468 in |
| Special Features | Corrosion resistant |
| Color - Plugs and Receptacles | Black |
| HP | 1/2 |
| NEMA Rating | WD-6; 5-15P |
| UL 94 Flammability Rating | HB |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 18 AWG |
| Maximum Wire Size | 12 AWG |
| Resistance Properties | Corrosion Resistant |
| Housing Material | Polycarbonate |
| Connection Orientation | Straight |
| Polarized | Yes |
| Maximum Operating Temperature | 167 deg F |
| For Maximum Cable Diameter | 0.43 in |
| Housing Color | Black |
| Minimum Operating Temperature | -40 deg F |
| NEMA Plug Configuration | 5-15P |
| Current Rating | 15 A |
| Grounding | Grounded |
| Horsepower Rating | 0.5 HP |
| Market | Industrial, Commercial |
| For Minimum Cable Diameter | 0.31 in |
| Insulation Material | Neoprene |
| Voltage Rating | 125V AC |
| Number of Blades | 3 |
| Blade Material | Solid Brass |
| Body Style | Straight |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Cord Clamp Material | Nylon-Natural |
| Weight (Lbs.) | 0.1 |
| Flammability | Rated HB or better UL94 |
| Body Material | Impact Modified Nylon |
| Dielectric Strength | Withstands 2000V per UL498 |
| Contact Blades Material | .060" Brass |
| Blade Holder Material | Nylon-Natural |
| Ground Contact Blade Material | .040" Copper Alloy |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Retainer Material | Polycarbonate-Clear |
| Environment | Dry |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating Description | 125 V |
| Application | Industrial/Commercial Grade |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Horsepower - Maximum | 0.5 |
| Wire Size | #18 AWG to #12 AWG |
| Item Type | Insulgrip Plug |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Package Quantity | 1 |
