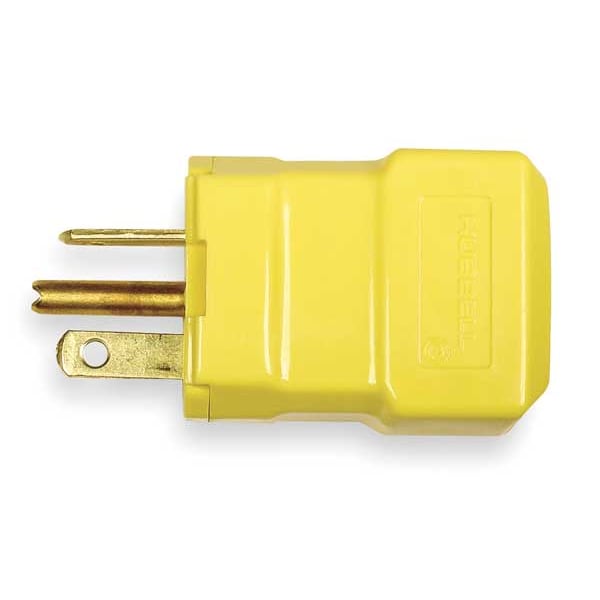

3 Wire Industrial Straight Blade Plug 125VAC 20A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-20P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Yellow |
| Number of Poles | 2 |
| Special Features | Corrosion resistant |
| HP | 1 |
| Material | Nylon |
| Amps | 20 |
| Grade | Industrial |
| Phase | Single |
| Corrosion Resistant | Yes |
| IP Rating | IP20 |
| Voltage | 125VAC |
| Color - Plugs and Receptacles | Yellow |
| Standards | CSA Certified C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706 |
| Cord Size | 0.22 to 0.66 in |
| Type | Plug |
| NEMA Rating | WD-6; 5-20P |
| Polarized | Yes |
| For Maximum Cable Diameter | 0.66 in |
| Number of Blades | 3 |
| Minimum Operating Temperature | -40 deg F |
| Body Length | 1.87 in |
| Minimum Wire Size | 18 AWG |
| Maximum Operating Temperature | 167 deg F |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| For Minimum Cable Diameter | 0.22 in |
| NEMA Plug Configuration | 5-20P |
| Current Rating | 20 A |
| Wire Connection Type | Screw Terminals |
| Insulation Material | Nylon |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 12 AWG |
| Grounding | Grounded |
| Market | Industrial, Commercial |
| Housing Material | Polycarbonate |
| Horsepower Rating | 1 HP |
| Housing Color | Yellow |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Body Material | Impact Modified Nylon |
| Cord Clamp Material | Noryl |
| Environment | Dry |
| Blade Material | Solid Brass |
| Flammability | Rated HB or better UL94 |
| Ground Contact Blade Material | .040" Copper Alloy |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Terminal Screw Material | Steel |
| Weight (Lbs.) | 0.1 |
| Contact Blades Material | .060" Brass |
| Body Style | Straight |
| Ground Screw Material | Steel |
| Dielectric Strength | Withstands 2000V per UL498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 1.87 in |
| Application | Industrial/Commercial Grade |
| Material - Mounting Hardware | Cord Mounted |
| Amperage Rating | 20 A |
| Performance | Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Item Type | Valise |
| Connectivity | Screw Terminals |
| Height | 1.87 in |
| Dimensions | 1.87 in x 1-1/4 in x 1.87 in |
| Industry Standard(s) | CSA Certified to C22.2 No 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Style | Standard |
| Voltage Rating Description | 125 V |
| Width | 1-1/4 in |
| Current / Amperage Rating | 20 A |
| Horsepower - Maximum | 1 |
| Series | Valise |
| Wire Size | #18 AWG to #12 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
