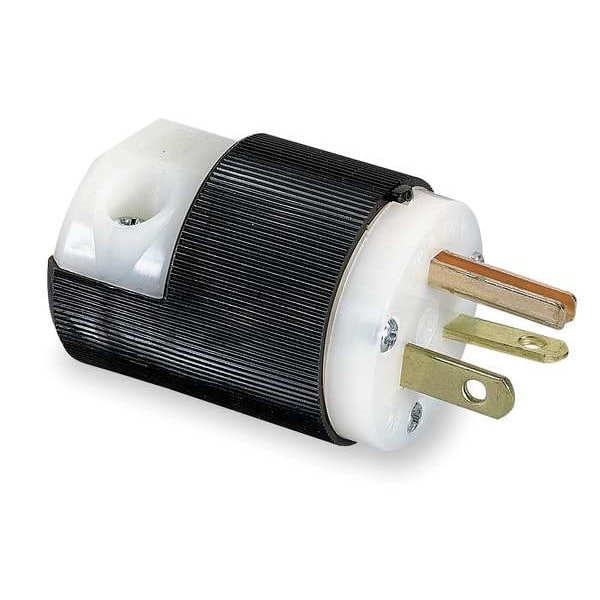

3 Wire Industrial Straight Blade Plug 250VAC 20A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-20P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Voltage | 250VAC |
| Phase | Single |
| Amps | 20 |
| Grade | Industrial |
| Color - Plugs and Receptacles | Black, White |
| Cord Size | 0.23 to 0.72 in |
| Corrosion Resistant | Yes |
| IP Rating | IP20 |
| Material | Nylon |
| Special Features | Corrosion resistant |
| HP | 2 |
| Standards | CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706 |
| NEMA Configuration | 6-20 |
| Type | Plug |
| NEMA Rating | WD-6; 6-20P |
| Horsepower Rating | 2 HP |
| Current Rating | 20 A |
| Connection Orientation | Straight |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 deg F |
| Polarized | Yes |
| For Minimum Cable Diameter | 0.23 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Insulation Material | Nylon |
| Minimum Wire Size | 18 AWG |
| Maximum Wire Size | 10 AWG |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Body Length | 1.97 in |
| Market | Industrial, Commercial |
| Outside Diameter | 1.53 in |
| UL 94 Flammability Rating | HB |
| Grounding | Grounded |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 0.72 in |
| NEMA Plug Configuration | 6-20P |
| Voltage Rating | 250V AC |
| Maximum Operating Temperature | 167 deg F |
| Environment | Dry |
| Retainer Material | Polycarbonate-Clear |
| Contact Blades Material | .060" Brass |
| Dielectric Strength | Withstands 2000V per UL498 |
| Blade Material | Solid Brass |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Blade Holder Material | Nylon-Natural |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Flammability | Rated HB or better UL94 |
| Body Material | Impact Modified Nylon |
| Cord Clamp Material | Nylon-Natural |
| Ground Contact Blade Material | .040" Copper Alloy |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Weight (Lbs.) | 0.15 |
| Body Style | Straight |
| Length | 1.97 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 5000 W |
| Wire Size | #18 AWG to #10 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 20 A |
| Environmental Conditions | Ribbed Nylon Housing Is Impact and Chemical Resistant |
| Height | 1.53 in |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Item Type | Insulgrip Plug |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Series | Insulgrip |
| Voltage Rating Description | 250 V |
| Width | 1.53 in |
| Current / Amperage Rating | 20 A |
| Horsepower - Maximum | 2 |
| Style | Standard |
| Dimensions | 1.97 in x 1.53 in x 1.53 in |
| Package Quantity | 1 |
