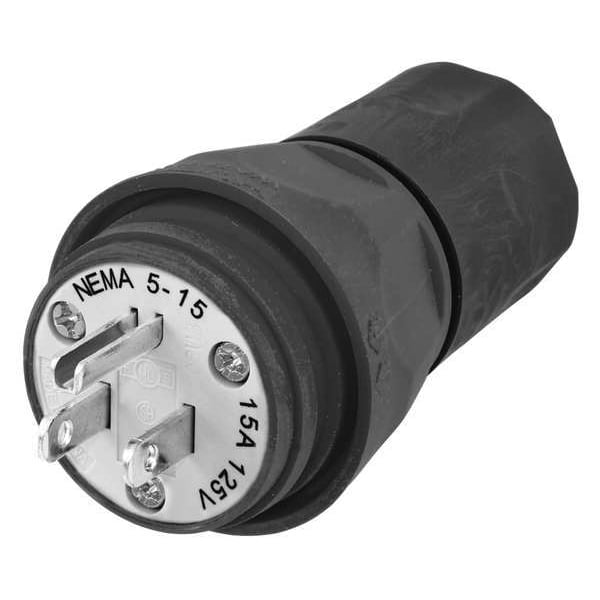

Clavija recta industrial impermeable de 3 hilos, 125VCA 15A.
| Item | Watertight Straight Blade Plug |
|---|---|
| Number of Wires | 3 |
| Color | Black |
| Number of Poles | 2 |
| Corrosion Resistant | Yes |
| Amps | 15 |
| Special Features | Corrosion resistant |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| Phase - Plugs and Receptacles | 1 |
| Wiring Style | Standard |
| Voltage | 125VAC |
| Grade | Industrial |
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
| Cord Size | 0.3 to 5/8 in |
| Antimicrobial | No |
| Color - Plugs and Receptacles | Black |
| Grade - Plugs and Receptacles | Industrial |
| HP | 0.5 |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| NEMA Configuration | 5-15 |
| IP Rating | IP69K |
| Standards | CSA Certified, NSF, UL Listed |
| Phase | Single |
| Material | Thermoplastic Elastomer, Valox |
| Type | Plugs |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| Insulation Material | Thermoplastic |
| Current Rating | 15 A |
| Grounding | Grounded |
| Horsepower Rating | 0.5 HP |
| Market | Industrial, Commercial |
| Housing Material | Thermoplastic Elastomer, Valox |
| NEMA Plug Configuration | 5-15P |
| NEMA Enclosure Rating | 4X |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 5/8 in |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Voltage Rating | 125V AC |
| Housing Color | Black |
| Polarized | Yes |
| For Minimum Cable Diameter | 0.3 in |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Temp. Rise | 30°C |
| Bushing Material | Black Elastomer |
| Dielectric Strength | 2,500 V AC |
| Contact Material | Nickel Plated Brass |
| Retainer Material | Clear Polycarbonate |
| Body Material | Thermoplastic Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Operating Temp. | -40 to 60°C |
| Amperage Rating | 15 A |
| Series | Watertight Devices |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
