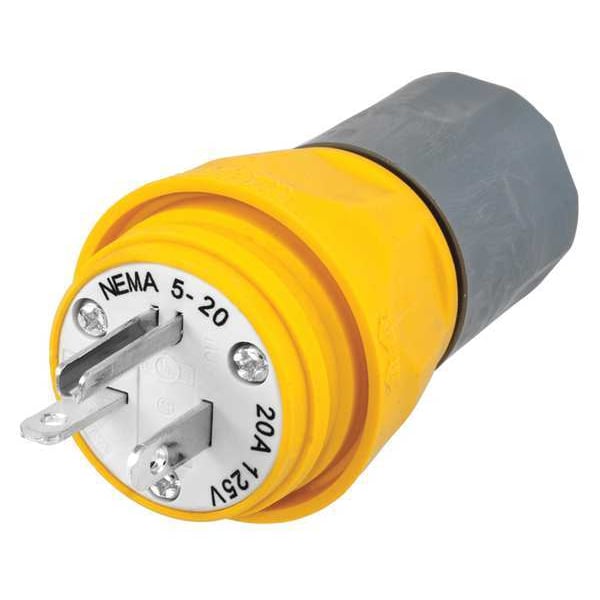

3 Wire Industrial Watertight Straight Blade Plug 125VAC 20A
| Item | Watertight Straight Blade Plug |
|---|---|
| Number of Wires | 3 |
| Color | Yellow |
| Number of Poles | 2 |
| Cord Size | 0.3 to 5/8 in |
| Grade | Industrial |
| Special Features | Corrosion resistant |
| NEMA Configuration | 5-20 |
| Material | Thermoplastic Elastomer, Valox |
| Standards | ANSI, CSA Certified, CSA Certified C22.2 No. 42, NEMA WD-1 WD-6, UL 498, UL Listed |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | Yes |
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
| NEMA Plug Configuration - Plugs and Receptacles | 5-20P |
| Amps - Plugs and Receptacles | 20 A |
| Voltage | 125VAC |
| HP | 1.0 |
| Wiring Style | Standard |
| IP Rating | IP69K |
| Antimicrobial | No |
| Phase | Single |
| Color - Plugs and Receptacles | Yellow |
| Amps | 20 |
| Voltage - Plugs and Receptacles | 125V AC |
| Phase - Plugs and Receptacles | 1 |
| Type | Plugs |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| Grounding | Grounded |
| For Maximum Cable Diameter | 5/8 in |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| For Minimum Cable Diameter | 3/8 in |
| Maximum Operating Temperature | 140 deg F |
| Connection Orientation | Straight |
| Horsepower Rating | 1 HP |
| Number of Blades | 3 |
| Polarized | Yes |
| Insulation Material | Elastomer |
| Market | Industrial, Commercial |
| Housing Color | Yellow |
| Minimum Operating Temperature | -40 deg F |
| NEMA Plug Configuration | 5-20P |
| Resistance Properties | Corrosion Resistant |
| Housing Material | Thermoplastic Elastomer |
| Contact Material | Nickel Plated Brass |
| Bushing Material | Black Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Body Material | Thermoplastic Elastomer |
| Temp. Rise | 30°C |
| Dielectric Strength | 2,500 V AC |
| Retainer Material | Clear Polycarbonate |
| Operating Temp. | -40 to 60°C |
| Amperage Rating | 20 A |
| Industry Standard(s) | IP69K rating Listed to UL498 Certified to CSA C22.2 No. 42 Meets NEMA WD-1, WD-6 And ANSI Standards UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P |
| Temperature Rating | -40°C (without impact) to +60°C continuous |
| Operating Temperature | -40°C to +60°C continuous |
| Current / Amperage Rating | 20 A |
| Voltage Rating Description | 125 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical:Current Interrupting Rated for current interruption per UL498 Dielectric Voltage: 2500V AC Max Working Voltage As marked Temperature Rise: 30°C max per UL498 at rated current Mechanical:Cord Accomodation: 0.375"-0.625" (9.5-15.9) Environmental:Moisture Resistance UL Listed 4, 4X, 12, 6, 6P Operating temperatures -40°C (without impact) to +60°C continuous UV resistance All exposed materials are UV stabilized |
| Series | Watertight Devices |
| Package Quantity | 1 |
