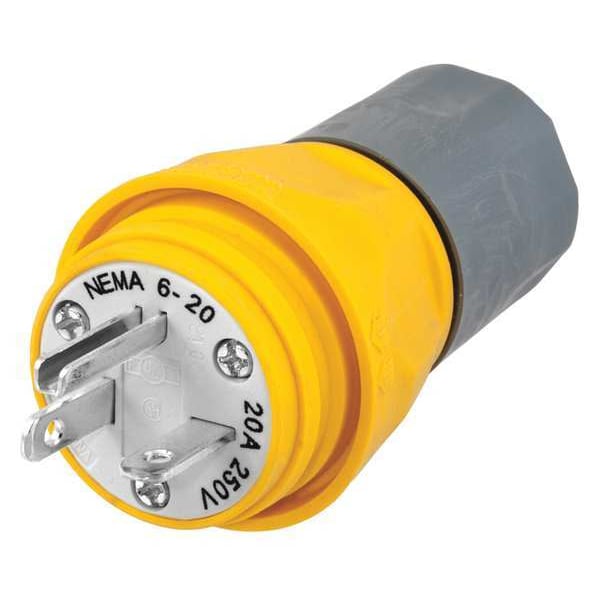

3 Wire Industrial Watertight Straight Blade Plug 250VAC 20A
| Item | Watertight Straight Blade Plug |
|---|---|
| Number of Wires | 3 |
| Color | Yellow |
| Number of Poles | 2 |
| Phase | Single |
| Grade - Plugs and Receptacles | Industrial |
| Cord Size | 0.3 to 5/8 in |
| Grade | Industrial |
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
| Standards | CSA Certified, NSF, UL Listed |
| NEMA Configuration | 6-20 |
| HP | 2.0 |
| Wiring Style | Standard |
| Antimicrobial | No |
| Voltage | 250VAC |
| Amps | 20 |
| IP Rating | IP69K |
| Corrosion Resistant | Yes |
| Color - Plugs and Receptacles | Yellow |
| Voltage - Plugs and Receptacles | 250V AC |
| Material | Thermoplastic Elastomer, Valox |
| NEMA Plug Configuration - Plugs and Receptacles | 6-20P |
| Amps - Plugs and Receptacles | 20 A |
| Phase - Plugs and Receptacles | 1 |
| Special Features | Corrosion resistant |
| Type | Plugs |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| Current Rating | 20 A |
| Market | Industrial |
| For Minimum Cable Diameter | 0.3 in |
| Housing Color | Yellow |
| Insulation Material | Thermoplastic |
| NEMA Enclosure Rating | 4X |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Voltage Rating | 250V AC |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Material | Thermoplastic Elastomer, Valox |
| Connection Orientation | Straight |
| Polarized | Yes |
| NEMA Plug Configuration | 6-20P |
| For Maximum Cable Diameter | 5/8 in |
| Horsepower Rating | 2 HP |
| Temp. Rise | 30°C |
| Body Material | Thermoplastic Elastomer |
| Dielectric Strength | 2,500 V AC |
| Bushing Material | Black Elastomer |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Retainer Material | Clear Polycarbonate |
| Contact Material | Nickel Plated Brass |
| Operating Temp. | -40 to 60°C |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Series | Watertight Devices |
| Voltage Rating Description | 250 V |
| Package Quantity | 1 |
