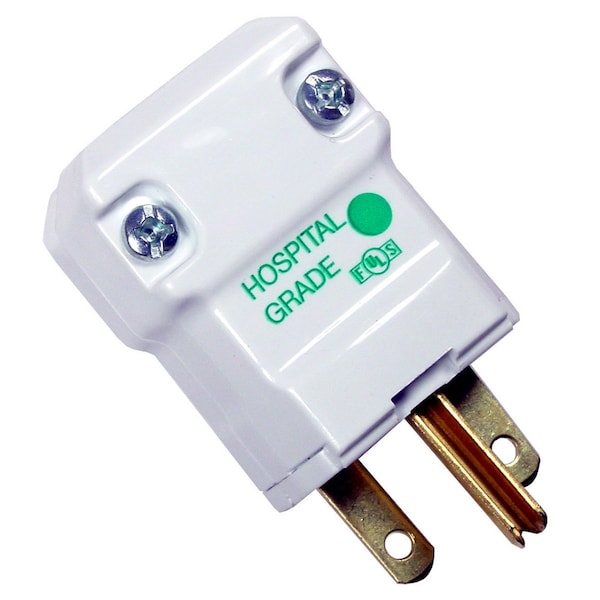

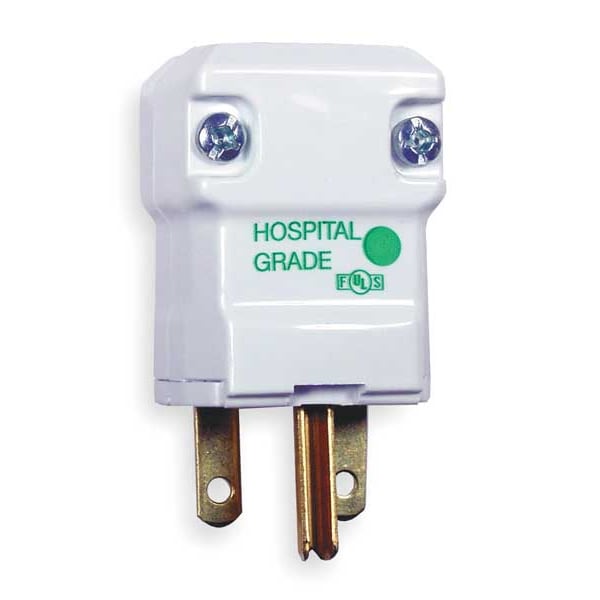

3 Wire Straight Blade Plug Hospital Grade 250VAC 15A
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Plugs and Receptacles | Straight Blade Plug |
| Item | Valise Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-15P |
| Number of Wires | 3-Wire |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | White |
| Number of Poles | 2-Pole |
| Standards | CSA Certified C22.2 No. 42 File 280C, Federal Specification W-C-596, NEMA WD-6, UL 498 File E1706 |
| Amps | 15 |
| Grade | Hospital Grade |
| IP Rating | IP20 |
| Special Features | Corrosion resistant |
| Corrosion Resistant | Yes |
| Material | Nylon |
| HP | 1-1/2 |
| Voltage | 250VAC |
| Cord Size | 0.3 to 0.66 in |
| Phase | Single |
| Color - Plugs and Receptacles | White |
| NEMA Configuration | 6-15 |
| Type | Plug |
| Connectivity | Screw Terminals |
| Series | Hospital Grade |
| Dimensions | 1.88 in x 1-1/2 in x 1.13 in |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard |
| Maximum Horsepower | 1.5 |
| Amperage | 15 A |
| Nema Rating | 6 to 15 P |
| Wire Size | #18 AWG to #12 AWG |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Carton Quantity | 10 |
| Insulation | Insulated Body |
| Voltage Rating | 250 V |
| Cord Dia. Range | #18AWG to #12AWG |
| Brand | Hubbell Wiring Device-Kellems |
| Style | Valise |
| Maximum Wire Size | 12 AWG |
| Grounding | Grounded |
| For Maximum Cable Diameter | 0.66 in |
| Housing Material Finish | Nickel Plated |
| For Environment | Dry |
| For Location | Indoor |
| For Minimum Cable Diameter | 0.3 in |
| UL 94 Flammability Rating | HB |
| Maximum Operating Temperature | 167 deg F |
| Housing Color | White |
| Minimum Operating Temperature | -40 deg F |
| Number of Blades | 3 |
| Resistance Properties | Corrosion Resistant |
| Insulation Material | Nylon |
| Horsepower Rating | 1.5 HP |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| NEMA Plug Configuration | 6-15P |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 18 AWG |
| Polarized | Yes |
| Body Length | 1.88 in |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Weight (Lbs.) | 0.1 |
| Flammability | UL 94 HB |
| Body Style | Straight |
| Connector Type | Valise |
| Package Quantity | 1 |
