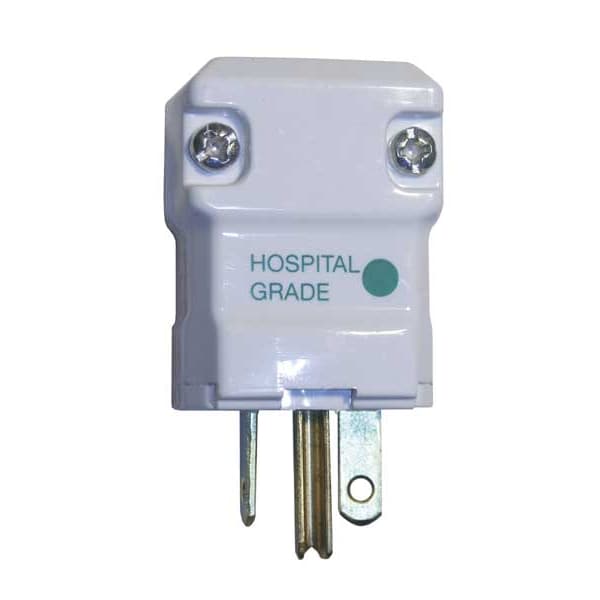

3 Wire Straight Blade Plug Hospital Grade 250VAC 20A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Valise Plug |
| Wiring Style | Hinged |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-20P |
| Number of Wires | 3-Wire |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | White |
| Number of Poles | 2-Pole |
| Amps | 20 |
| Corrosion Resistant | Yes |
| NEMA Configuration | 6-20 |
| Color - Plugs and Receptacles | White |
| Material | Nylon |
| Voltage | 250VAC |
| Grade | Hospital Grade |
| Phase | Single |
| Special Features | Corrosion resistant |
| HP | 2 |
| Standards | CSA Certified C22.2 No. 42 File 280C, Federal Specification W-C-596, NEMA WD-6, UL 498 File E1706 |
| IP Rating | IP20 |
| Cord Size | 0.3 to 0.66 in |
| Type | Plug |
| Dimensions | 1.88 in x 1-1/2 in x 1.13 in |
| Style | Valise |
| Cord Dia. Range | #18AWG to #12AWG |
| Amperage | 20 A |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Series | Hospital Grade |
| Voltage Rating | 250 V |
| Brand | Hubbell Wiring Device-Kellems |
| Nema Rating | 6 to 20 P |
| Carton Quantity | 10 |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard |
| Maximum Horsepower | 2 |
| Connectivity | Screw Terminals |
| Current Rating | 20 A |
| Insulation | Insulated Body |
| Wire Size | #18 AWG to #12 AWG |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 18 AWG |
| Grounding | Grounded |
| Housing Color | White |
| Maximum Operating Temperature | 167 deg F |
| For Location | Indoor |
| For Minimum Cable Diameter | 0.3 in |
| Resistance Properties | Corrosion Resistant |
| Body Length | 1.88 in |
| Minimum Operating Temperature | -40 deg F |
| Number of Blades | 3 |
| Insulation Material | Nylon |
| Power Indicating Lights | Without Power Indicating Lights |
| Housing Material Finish | Nickel Plated |
| Horsepower Rating | 2 HP |
| Housing Material | Nylon |
| For Environment | Dry |
| Maximum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| NEMA Plug Configuration | 6-20P |
| Polarized | Yes |
| For Maximum Cable Diameter | 0.66 in |
| Wire Connection Type | Screw Terminals |
| Body Style | Straight |
| Weight (Lbs.) | 0.15 |
| Flammability | UL 94 HB |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Connector Type | Valise |
| Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Height | 1.13 in |
| Width | 1-1/2 in |
| Industry Standard(s) | CSA Certified to C22.2 No 42 File 280C Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E1706 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 2 |
| Voltage Rating Description | 250 V |
| Cord Range | 0.300"-0.660" |
| Current / Amperage Rating | 20 A |
| Item Type | Valise Plug |
| Application | Hospital Grade |
| Length | 1.88 in |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Conductor Range | #18AWG to #12AWG |
| Material - Mounting Hardware | Cord Mounted |
| Package Quantity | 1 |
