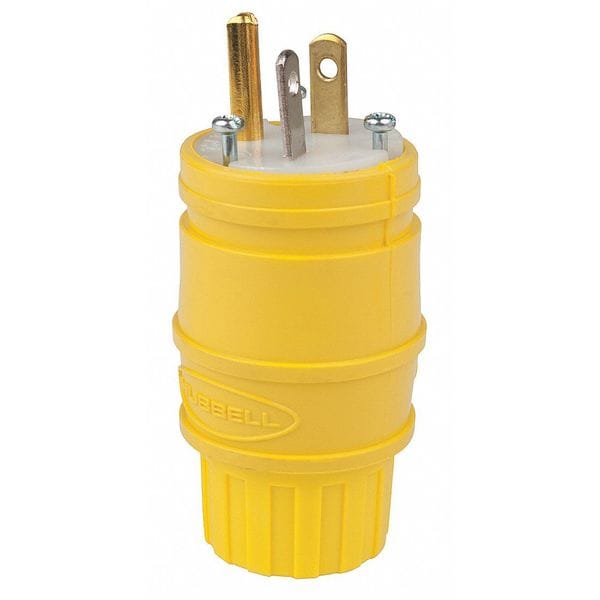

3 Wire Watertight Straight Blade Plug 125VAC 20A
| Item | Watertight Straight Blade Plug |
|---|---|
| Number of Wires | 3 |
| Color | Yellow |
| Number of Poles | 2 |
| Grade - Plugs and Receptacles | General |
| Amps - Plugs and Receptacles | 20 A |
| IP Rating | IP55 |
| NEMA Configuration | 5-20 |
| Amps | 20 |
| Corrosion Resistant | Yes |
| Standards | CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706 |
| Color - Plugs and Receptacles | Yellow |
| Material | PVC |
| Voltage - Plugs and Receptacles | 125V AC |
| Phase - Plugs and Receptacles | 1 |
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
| Cord Size | 0.3 to 0.655 in |
| Special Features | Corrosion resistant |
| Antimicrobial | No |
| Voltage | 125VAC |
| Grade | General |
| Wiring Style | Standard |
| Phase | Single |
| HP | 1.0 |
| NEMA Plug Configuration - Plugs and Receptacles | 5-20P |
| Type | Plugs |
| Body Length | 2.67 in |
| Maximum Wire Size | 12 AWG |
| Number of Blades | 3 |
| Current Rating | 20 A |
| Insulation Material | Elastomer |
| Polarized | Yes |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| Resistance Properties | Watertight |
| Market | Industrial, Commercial |
| Minimum Wire Size | 18 AWG |
| Housing Material | Polycarbonate |
| UL 94 Flammability Rating | V-2 |
| For Maximum Cable Diameter | 0.655 in |
| Maximum Operating Temperature | 167 deg F |
| Minimum Operating Temperature | -40 deg F |
| NEMA Plug Configuration | 5-20P |
| For Minimum Cable Diameter | 0.3 in |
| Housing Color | Yellow |
| Horsepower Rating | 0.5 HP |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Dielectric Strength | 2,000 V |
| Retainer Material | Clear Polycarbonate |
| Flammability | UL 94 V2 |
| Contact Material | Brass, Copper Alloy |
| Product Type | Plug |
| Temp. Rise | 30°C |
| Weight | 0.2 lb |
| Operating Temp. | -40 to 75°C |
| Item Type | Elastogrip |
| Dimensions | 2.67 in x 1.55 in x 2.67 in |
| Width | 1.55 in |
| Horsepower - Maximum | 0.5 |
| Nema Rating | 5-20P |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Application | Commercial, Industrial Grade |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125 V |
| Style | Standard |
| Length | 2.67 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #18 AWG to #12 AWG |
| Performance | Electrical:Current Interrupting Certified for current interrupting at full rated current,Dielectric Voltage Withstands 2,000V minimum MechanicalProduct Identification Ratings are a permanent part of the device Terminal Accommodation #18-#12 AWG. Stranded copper wire only. Terminal Identification:Terminals identified in accordance with UL 498 and CSA Environmental:Flammability UL 94 V-2,IP Suitability IP55,Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Series | Elastogrip |
| Connectivity | Screw Terminals |
| Display Size | Standard Sized Product |
| Height | 2.67 in |
| Material - Mounting Hardware | Cord Mounted |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Package Quantity | 1 |
